Roxtec SK Cable Transit Frame

Cable Transits - Roxtec Rectangular

Cable & Pipe Seals

Roxtec Swan Neck Transit Frame

The Roxtec SK frame is an extended version of the regular S type cable transit frame.

The total depth of the Roxtec SK frame is 100mm - this cable transit frame type is sometimes used for an angular attachment to accommodate stiff low and high voltage cables that do not pass in a straight angle through a deck or bulkheadin marine and offshore applications.

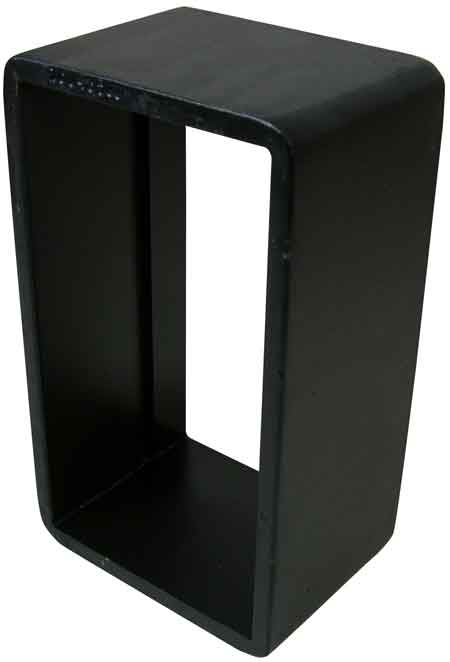

Pictured: Roxtec SK Cable Transit Frame

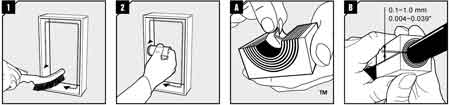

Pictured : Installation of Roxtec Cable Transit Frame SK Type

1. Make sure that all inside surfaces of the frame are free from dust or dirt.

2. Lubricate the inside surfaces with Roxtec Lubricant, especially into the corners.

A. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic. B. The halves may not differ by more than one layer.

B. Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe.

Roxtec SK Cable Transit Frame

Frame	For No openings	Packing Space (mm)	External Dimensions		Weight
			HxW (mm)	HxW (in)	(kg)	(lb)
SK 2x1 primed	1	60 x 120	121 x 141	4.764 x 5.551	4.4	9.612
SK 2x2 primed	2	60 x 120	121 x 271	4.764 x 10.669	7.1	15.675
SK 2x3 primed	3	60 x 120	121 x 402	4.764 x 15.827	9.9	21.738
SK 2x4 primed	4	60 x 120	121 x 532	4.764 x 20.945	12.6	27.800
SK 4x1 primed	1	120 x 120	180 x 141	7.087 x 5.551	5.4	11.905
SK 4x2 primed	2	120 x 120	180 x 271	7.087 x 10.669	8.4	18.585
SK 4x3 primed	3	120 x 120	180 x 402	7.087 x 15.827	11.5	25.243
SK 4x4 primed	4	120 x 120	180 x 532	7.087 x 20.945	14.5	31.923
SK 6x1 primed	1	180 x 120	238 x 141	9.370 x 5.551	6.4	14.198
SK 6x2 primed	2	180 x 120	238 x 271	9.370 x 10.669	10.8	23.722
SK 6x3 primed	3	180 x 120	238 x 402	9.370 x 15.827	15.1	33.268
SK 6x4 primed	4	180 x 120	238 x 532	9.370 x 20.945	19.4	42.814
SK 8x1 primed	1	240 x 120	298 x 141	11.732 x 5.551	7.5	16.535
SK 8x2 primed	2	240 x 120	298 x 271	11.732 x 10.669	12.4	27.315
SK 8x3 primed	3	240 x 120	298 x 402	11.732 x 15.827	17.3	38.118
SK 8x4 primed	4	240 x 120	298 x 532	11.732 x 20.945	22.2	48.899
