Roxtec GHM Transit Frame

The Roxtec GHM frame was developed for applications where welding is not suitable. The flange has a pre-defined hole pattern for bolts, corresponding to exposure levels in tests. The frame is delivered with a TSL 15x6 sealing strip.

The GHM frame is relatively low weight compared to SF frames makes it easier to handle during installation.The GHM Frame is attached by bolting, it is drilled to standardized hole pattern, and is for use with Roxtec RM cable and pipe sealing modules.

Roxtec GHM frames are available in primed mild steel.

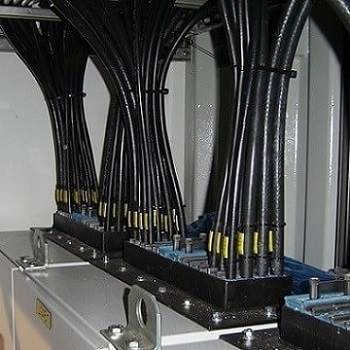

Pictured: Roxtec GHM Cable Transit Frame​

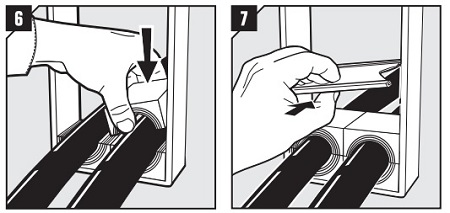

Pictured : Installation of Roxtec Cable Transit Frame GHM Type

6. Insert the modules according to your installation plan (transit plan). It is recommended to seal cables/ pipes at the bottom of the frame and put spare modules on top.

7. Insert a stayplate on top of every finished row of modules.

Roxtec C KFO Cable Transit Frame

Frame	For No openings	Packing Space (mm)	External Dimensions		Weight
			HxW (mm)	HxW (in)	(kg)	(lb)
GHM 2x1 primed	1	60 x 120	221 x 241	8.700 x 9.488	3.4	7.562
GHM 2x2 primed	2	60 x 120	233 x 383	9.173 x 15.079	5.4	11.905
GHM 2x3 primed	3	60 x 120	233 x 514	9.173 x 20.236	7.4	16.218
GHM 4x1 primed	1	120 x 120	280 x 241	11.024 x 9.488	4.1	9.039
GHM 4x2 primed	2	120 x 120	292 x 383	11.496 x 15.079	6.3	13.977
GHM 4x3 primed	3	120 x 120	292 x 514	11.496 x 20.236	8.6	18.938
GHM 6x1 primed	1	180 x 120	338 x 241	13.307 x 9.488	4.8	10.516
GHM 6x2 primed	2	180 x 120	350 x 383	13.780 x 15.079	7.3	16.072
GHM 6x3 primed	3	180 x 120	350 x 514	13.780 x 20.236	9.8	21.627
