Roxtec CF24 Transit Frame



The Roxtec CF24 frame is a bolted together aluminum frame which can be installed around existing cables. It is attached by bolting, is equipped with adaptable modules and supplied as ready made kits.

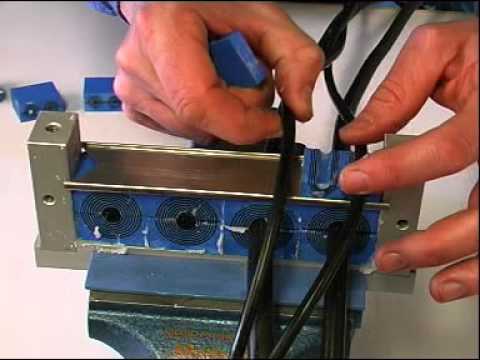

Pictured : Roxtec CF24 Cable Transit Frame

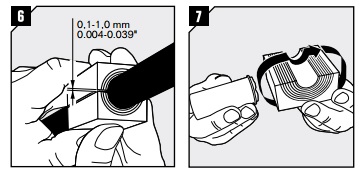

Pictured : Installation of Roxtec Cable Transit Frame CF24 Type

6. Try to achieve a 0,1-1,0 mm gap between the two halves when held against the cable/pipe

7. Lubricate all modules thoroughly with Roxtec Lubricant, both the inside and the outside surfaces.


Roxtec CF24 Cable Transit Frame

Part Number	For No openings	External Dimensions
		HxW (mm)	HxW (in)
CF 24/8	1	100 x 209	3.397 x 8.228
CF 24/12	1	100 x 209	3.397 x 8.228
CF 24/28	1	100 x 209	3.397 x 8.228
