Roxtec CF16 Transit Frame

Roxtec CF16 Cable Transit frame, very low profile and suitable for enclosures where many cables need to be routed in areas with limited space. The frame is also available in an open version for installations around existing cables.

The CF16 has integrated compression and is ready to accommodate up to 30 cables. CF16 has a protection capacity similar to other compact sealings/ frames, available in kits, attached by bolting, and are for use with CM components.

The CF16 Frame/Kit is available in Powder Coated mild steel or Stainless Steel.

Pictured : Roxtec CF16 Cable Transit Frame

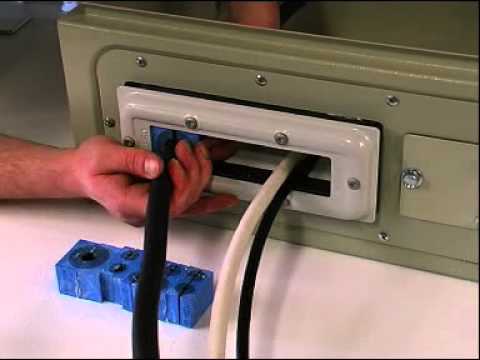

Pictured : Installation of Roxtec Cable Transit Frame CF16 Type

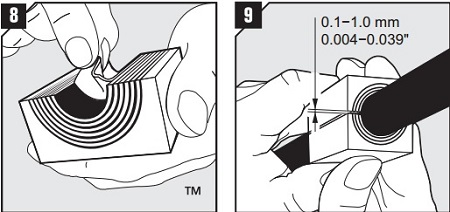

8. Adapt modules which are to hold cables or pipes by peeling off layers until you reach the gap seen in pic. 9. The halves may not differ by more than one layer.

9. Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe.

Roxtec CF16 Cable Transit Frame

Parts	For No openings	Packing Space (mm)	External Dimensions		Weight
			HxW (mm)	HxW (in)	(kg)	(lb)
CF 16	1	160 x 40	234 x 93	9.213 x 3.661	1.4	3.086
CF 16 Open	1	160 x 40	234 x 93	9.213 x 3.661	1.4	3.086
CF 16 AISI 304	1	160 x 40	234 x 93	9.213 x 3.661	1.2	2.646
CF 16 AISI 304 Open	1	160 x 40	234 x 93	9.213 x 3.661	1.2	2.646
