Prysmian 424TP53 Explosion Proof EEx e & Eex d Glands for Lead Sheathed Cables (EEMUA133)

Prysmian BICON 424TP Explosion Proof Barrier Cable Glands

Zone 1 & Zone 2 Hazardous Areas (ATEX Certified)

Ex d Cable Glands

Prysmian Bicon Barr-PB Ex d IIC - 424TP53



BICON Cable Glands - Prysmian Explosion Proof Cable Glands

The Prysmian 424TP53 is a barrier type cable gland for lead sheathed cables in Zone 1 and Zone 2 hazardous areas which aids the control of mingrating gasses. Prysmian Bicon 424TP53 BARR-BP Exd IIC cable gland provides the highest level of hazardous protection.

Prysmian 424TP53 gland kit suits 11.7mm - 20.8mm diameter cables. Nickel plated cable glands available (424TP53V).

Prysmian 424TP Series Barrier Cable Gland Specifications

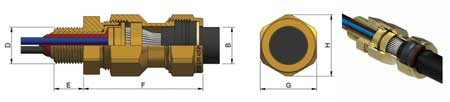

Gland Reference	Cable Dimensions (mm)					Gland Dimensions
Design Ref	Size Metric	Max dia.	Max No.	Overall Ø (B)		D	E	F	Hexagon
				Min	Max				A/F G	A/C H
Prysmian 424TP-53	20	11	30	11.7	20.8	M20 x 1.5	15	64	30.5	34
