Pfisterer MV-Connex Separable Connectors Size 2

Rated up to 11-33kV, 800 Amps

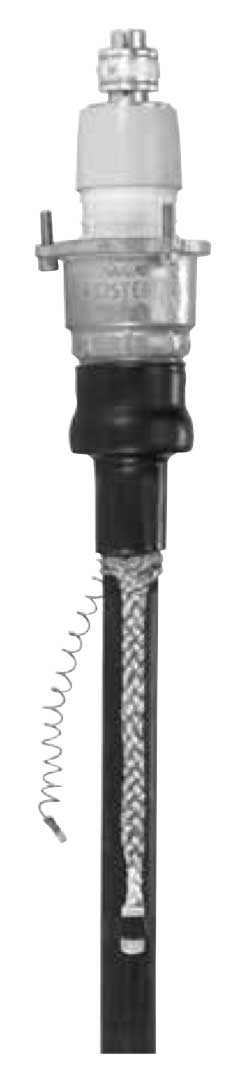

Pfisterer MV-Connex Separable Connector - Size 2



Pfisterer Connex Inner Cone Plugs & Cable Terminations for High Voltage Gas Insulated Switchgear GIS (SF6) 33kV

Pfisterer size 2 inner cone plug separable connectors are suitable for terminating high voltage single core cables with copper wire screens. Pfisterer HV cable plugs are suitable for indoor and outdoor cable terminations with or without voltage taps - offshore and 3 core version Pfisterer cable plugs are available.

Suitable for 35sqmm, 50sqmm, 70sqmm, 95sqmm, 120sqmm, 150sqmm, 185sqmm, 240sqmm and 300sqmm cable cross-section conductors, 33kV.

Pfisterer Size 2 MV-Connex Separable Connector Features

  • For DIN VDE cables
  • For RM-conductor (stranded circular) of aluminium or copper
  • For single core cable with copper wire shield without armouring
  • With sealing system (bell flange seal and shrink tubing)
  • For indoor and outdoor applications
  • Not soil-resistant and not offshore-proof
  • Offshore version on request
  • Packaging unit: set with three separable connectors
  • 3-core version on request
  • Rotatable Flange



Pfisterer Size 2 MV-Connex Separable Connector Specifications

Product No.

(w/ voltage tap)

Product No.

(w/o voltage tap)

Max Oper-ating Voltage

For Cable Cross Section

 For Dia. Over Con-ductor

For Insulation Thick-ness

For Diameter Over XPLE Insulation

Ø
Pfisterer 850210050 Pfisterer 870210050 11/12 kV 50mm² 7.5mm - 8.8mm 3.4mm 13.5mm - 17.5mm
Pfisterer 850210070 Pfisterer 870210070 11/12 kV 70mm² 9.3mm - 10.6mm 3.4mm 16mm - 19.5mm
Pfisterer 850210095 Pfisterer 870210095 11/12 kV 95mm² 10.8mm - 12.1mm 3.4mm 18mm - 21.5mm
Pfisterer 850210120 Pfisterer 870210120 11/12 kV 120mm² 12.3mm - 13.6mm 3.4mm 18mm - 21.5mm
Pfisterer 850210150 Pfisterer 870210150 11/12 kV 150mm² 13.8mm - 15.1mm 3.4mm 20mm - 23.5mm
Pfisterer 850210185 Pfisterer 870210185 11/12 kV 185mm² 15.3mm - 16.6mm 3.4mm 22mm - 25.5mm
Pfisterer 850210240 Pfisterer 870210240 11/12 kV 240mm² 17.8mm - 19.1mm 3.4mm 25mm - 28.5mm
Pfisterer 850210300 Pfisterer 870210300​ 11/12 kV 300mm² 19.2mm - 20.9mm 3.4mm 26.5mm - 30mm
Pfisterer 850220050 Pfisterer 870220050 22/24 kV 50mm² 7.5mm - 8.8mm 5.5mm 18mm - 21.5mm
Pfisterer 850220070 Pfisterer 870220070 22/24 kV 70mm² 9.3mm - 10.6mm 5.5mm 20mm - 23.5mm
Pfisterer 850220095 Pfisterer 870220095 22/24 kV 95mm² 10.8mm - 12.1mm 5.5mm 22mm - 25.5mm
Pfisterer 850220120 Pfisterer 870220120 22/24 kV 120mm² 12.3mm - 13.6mm 5.5mm 23.5mm - 27mm
Pfisterer 850220150 Pfisterer 870220150 22/24 kV 150mm² 13.8mm - 15.1mm 5.5mm 25mm - 28.5mm
Pfisterer 850220185 Pfisterer 870220185 22/24 kV 185mm² 15.3mm - 16.6mm 5.5mm 26.5mm - 30mm
Pfisterer 850220240 Pfisterer 870220240 22/24 kV 240mm² 17.8mm - 19.1mm 5.5mm 28mm - 31.5mm
Pfisterer 850220300 Pfisterer 870220300​ 22/24 kV 300mm² 19.2mm - 20.9mm 5.5mm 31mm - 34.5mm
Pfisterer 850230035 Pfisterer 870230035 33/36 kV 35mm² 6mm - 7.3mm 8mm 16mm - 19.5mm
Pfisterer 850230050 Pfisterer 870230050 33/36 kV 50mm² 7.5mm - 8.8mm 8mm 23.5mm - 27mm
Pfisterer 850230070 Pfisterer 870230070 33/36 kV 70mm² 9.3mm - 10.6mm 8mm​ 25mm - 28.5mm
Pfisterer 850230095 Pfisterer 870230095 33/36 kV 95mm² 10.8mm - 12.1mm 8mm​ 26.5mm - 30mm
Pfisterer 850230120 Pfisterer 870230120 33/36 kV 120mm² 12.3mm - 13.6mm 8mm​ 28mm - 31.5mm
Pfisterer 850230150 Pfisterer 870230150 33/36 kV 150mm² 13.8mm - 15.1mm 8mm​ 29.5mm - 33mm
Pfisterer 850230185 Pfisterer 870230185 33/36 kV 185mm² 15.3mm - 16.6mm 8mm​ 31mm - 34.5mm
Pfisterer 850230240 Pfisterer 870230240 33/36 kV 240mm² 17.8mm - 19.1mm 8mm​ 32.5mm - 36mm
- Pfisterer 870235300 33/36 kV 300mm² 19.7mm - 21.4mm 8mm​ 36mm - 38.5mm



Pfisterer CONNEX components enable onshore and offshore LV-HV cable jointing, terminating and connecting of GIS Switchgear, Transformers, RMU (Ring Main Units), Capacitors, Transducers, Motors & Cable Sealing End Boxes – also surge arresters, busbar couplings, pluggable substation connectors and Sicon mechanical shearbolt cable lugs and splices for 11kV/33kV switchgear connection of MV-HV power cables.
