Pfisterer Connex Inner Cone Plugs Size 1, 33kV, 630A 50-185sqmm

Pfisterer MV-Connex Inner Cone Plugs Cable Terminations

High Voltage Cable Terminations

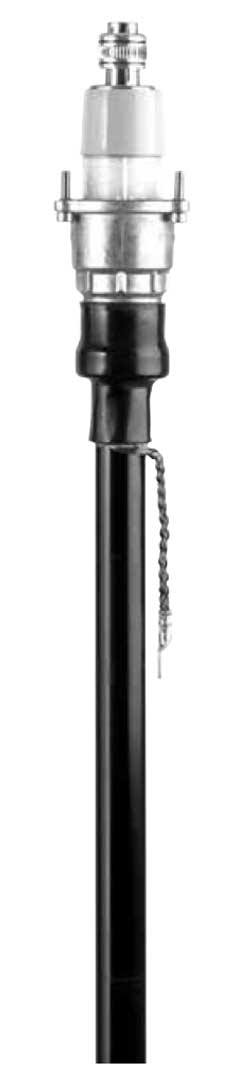

Pfisterer MV-Connex Separable Connectors Size 1

Rated up to 11-33kV, 630 Amps



Pfisterer Connex Inner Cone Plugs & Cable Terminations for High Voltage Gas Insulated Switchgear GIS (SF6) 33kV

Pfisterer size 1 inner cone plug separable connectors are suitable for terminating high voltage single core cables with copper wire screens. Pfisterer HV cable plugs are suitable for indoor and outdoor cable terminations with or without voltage taps - offshore and 3 core version Pfisterer cable plugs are available.

Suitable for 50sqmm, 70sqmm, 95sqmm, 120sqmm, 150sqmm, and 185sqmm cable cross-section conductors, 33kV.



Pfisterer Size 1 MV-Connex Separable Connector Features

• For DIN VDE cables
• For RM-conductor (stranded circular) of aluminium or copper
• For single core cable with copper wire shield without armouring
• With sealing system (bell flange seal and shrink tubing)
• For indoor and outdoor applications
• Not soil-resistant and not offshore-proof
• Offshore version on request
• Packaging unit: set with three separable connectors
• 3-core version on request



Pfisterer Size 0 MV-Connex Separable Connector Specifications

Product No.  (w/ voltage tap)	Product No. (w/o voltage tap)	Max Oper-ating Voltage	For Cable Cross Section	For Dia. Over Con-ductor	For Insulation Thick-ness	For Diameter Over XPLE Insulation Ø
Pfisterer 850110035	Pfisterer 870110035	11/12 kV	35mm²	6mm - 7.3mm	3.4mm	13.5mm - 17.5mm
Pfisterer 850110050	Pfisterer 870110050	11/12 kV	50mm²	7.5mm - 8.8mm	3.4mm	13.5mm - 17.5mm
Pfisterer 850110070	Pfisterer 870110070	11/12 kV	70mm²	9.3mm - 10.6mm	3.4mm	16mm - 19.5mm
Pfisterer 850110095	Pfisterer 870110095	11/12 kV	95mm²	10.8mm - 12.1mm	3.4mm	18mm - 21.5mm
Pfisterer 850110120	Pfisterer 870110120	11/12 kV	120mm²	12.3mm - 13.6mm	3.4mm	18mm - 21.5mm
Pfisterer 850110150	Pfisterer 870110150	11/12 kV	150mm²	13.8mm - 15.1mm	3.4mm	20mm - 23.5mm
Pfisterer 850110185	Pfisterer 870110185	11/12 kV	185mm²	15.3mm - 16.6mm	3.4mm	22mm - 25.5mm
Pfisterer 850110240	Pfisterer 870110240	11/12 kV	240mm²	17.8mm - 19.1mm	3.4mm	25mm - 28.5mm
Pfisterer 850120035	Pfisterer 870120035	22/24 kV	35mm²	6mm - 7.3mm	5.5mm	18mm - 21.5mm
Pfisterer 850120050	Pfisterer 870120050	22/24 kV	50mm²	7.5mm - 8.8mm	5.5mm	18mm - 21.5mm
Pfisterer 850120070	Pfisterer 870120070	22/24 kV	70mm²	9.3mm - 10.6mm	5.5mm	20mm - 23.5mm
Pfisterer 850120095	Pfisterer 870120095	22/24 kV	95mm²	10.8mm - 12.1mm	5.5mm	22mm - 25.5mm
Pfisterer 850120120	Pfisterer 870120120	22/24 kV	120mm²	12.3mm - 13.6mm	5.5mm	23.5mm - 27mm
Pfisterer 850120150	Pfisterer 870120150	22/24 kV	150mm²	13.8mm - 15.1mm	5.5mm	25mm - 28.5mm
Pfisterer 850120185	Pfisterer 870120185	22/24 kV	185mm²	15.3mm - 16.6mm	5.5mm	26.5mm - 30mm
Pfisterer 850120240	Pfisterer 870120240	22/24 kV	240mm²	17.8mm - 19.1mm	5.5mm	28mm - 31.5mm
Pfisterer 850130050	Pfisterer 870130050	33/36 kV	50mm²	7.5mm - 8.8mm	8mm	23.5mm - 27mm
Pfisterer 850130070	Pfisterer 870130070	33/36 kV	70mm²	9.3mm - 10.6mm	8mm​	25mm - 28.5mm
Pfisterer 850130095	Pfisterer 870130095	33/36 kV	95mm²	10.8mm - 12.1mm	8mm​	26.5mm - 30mm
Pfisterer 850130120	Pfisterer 870130120	33/36 kV	120mm²	12.3mm - 13.6mm	8mm​	28mm - 31.5mm
-	Pfisterer 870130150	33/36 kV	150mm²	13.8mm - 15.1mm	8mm​	30mm - 33.5mm
-	Pfisterer 870130185​	33/36 kV	185mm²	15.3mm - 16.6mm	8mm​	31mm - 34.5mm



Pfisterer CONNEX components enable onshore and offshore LV-HV cable jointing, terminating and connecting of GIS Switchgear, Transformers, RMU (Ring Main Units), Capacitors, Transducers, Motors & Cable Sealing End Boxes – also surge arresters, busbar couplings, pluggable substation connectors and Sicon mechanical shearbolt cable lugs and splices for 11kV/33kV switchgear connection of MV-HV power cables.

Size 1 Connectors – Pfisterer MV CONNEX Medium Voltage Cable Plugs

Pfisterer Connex Inner Cone Plug Cable Termination (HV) - Enquiry

Pfisterer Inner Cone Plugs Size 1, 33kV, 630A 50-185sqmm
