Pfisterer Connex Inner Cone Plugs Size 0, 24kV, 250A 25-70sqmm

Pfisterer MV-Connex Inner Cone Plugs Cable Terminations

High Voltage Cable Terminations

Pfisterer MV-Connex Separable Connectors Size 0

Rated up to 11-24kV, 250 Amps



Pfisterer Connex Inner Cone Plugs & Cable Terminations for High Voltage Gas Insulated Switchgear GIS (SF6) 33kV

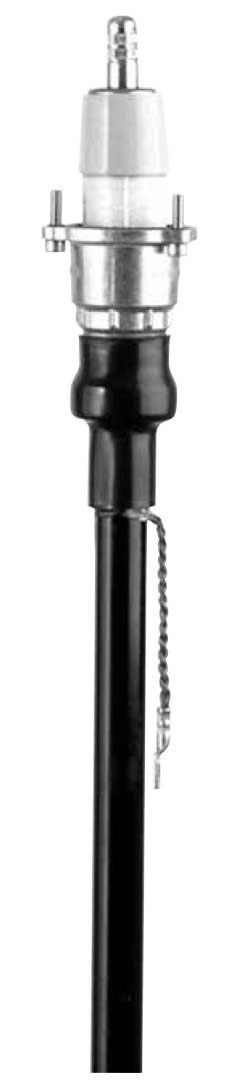

Pfisterer size 0 inner cone plug separable connectors are suitable for terminating high voltage single core cables with copper wire screens. Pfisterer HV cable plugs are suitable for indoor and outdoor cable terminations with or without voltage taps - offshore and 3 core version Pfisterer cable plugs are available.

Suitable for 25sqmm, 35sqmm, 50sqmm and 70sqmm cable cross-section conductors, 11kV - 24kV.



Pfisterer Size 0 MV-Connex Separable Connector Features

• For DIN VDE cables
• For RM-conductor (stranded circular) of aluminium or copper
• For single core cable with copper wire shield without armouring
• With sealing system (bell flange seal and shrink tubing)
• For indoor and outdoor applications
• Not soil-resistant and not offshore-proof
• Packaging unit: set with three separable connectors
• 3-core version on request



Pfisterer Size 0 MV-Connex Separable Connector Specifications

Product No. (w/o voltage tap)	Max Operating Voltage	For Cable Cross Section	For Diameter Over Conductor	For Insulation Thickness (nominal)	For Diameter Over XPLE Insulation Ø
Pfisterer 870010025	12kV	25mm²	5.6mm - 6.5mm	3.5mm	12.7mm - 16.3mm
Pfisterer 870010035	12kV	35mm²	6.6mm - 7.5mm	3.4mm	12.7mm - 16.3mm
Pfisterer 870010050	12kV	50mm²	7.7mm - 8.6mm	3.4mm	15mm - 19.2mm
Pfisterer 870010070	12kV	70mm²	9.3mm - 10.2mm	3.4mm	15mm - 19.2mm
Pfisterer 870020025	24kV	25mm²	5.6mm - 6.5mm	5.5mm	15mm - 19.2mm
Pfisterer 870020035	24​kV	35mm²	6.6mm - 7.5mm	5.5mm	18mm - 21.7mm
Pfisterer 870020050	24​kV	50mm²	7.7mm - 8.6mm	5.5mm	18mm - 21.7mm
Pfisterer 870020070	24​kV	70mm²	9.3mm - 10.2mm	5.5mm	20mm - 23.5mm



Pfisterer CONNEX components enable onshore and offshore LV-HV cable jointing, terminating and connecting of GIS Switchgear, Transformers, RMU (Ring Main Units), Capacitors, Transducers, Motors & Cable Sealing End Boxes – also surge arresters, busbar couplings, pluggable substation connectors and Sicon mechanical shearbolt cable lugs and splices for 11kV/33kV switchgear connection of MV-HV power cables.

Size 0 Connectors – Pfisterer MV CONNEX Medium Voltage Cable Plugs
