Heat Shrink Joint Kits, 4 Core PILC Cables

Heat Shrink Cable Joints to suit PILC Cables, 600/1000V-3.3kV

Heat Shrink Joint Kits, 4 Core PILC Cables

SPS Heat Shrink Joints to Suit Low Voltage Cables Type XLPE/SWA/PVC 0.6/3.3kV

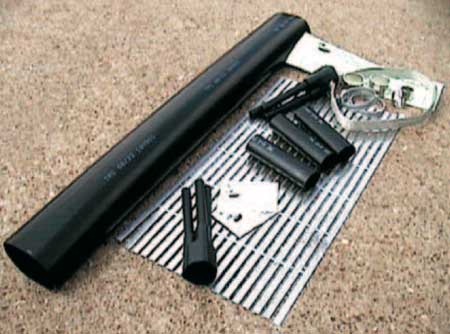

Heat shrink cable joint kits for 4 core Paper Insulated Lead Covered (PILC) cables include heat shrink breakout boots, core tubes and lead sheath earthing kits for multicore PILC /SWA power cables to BS6480.

The systems also comprise of adhesive lined connector insulation tubes, heavy duty armour cage, armour support rings and an outer thick wall adhesive lined heat shrink tubes

SPS Heat Shrink Joints 4 Core PILC Features

• Meets the jointing requirements of BS6910 part 1, test report available
• Unlimited shelf life
• Slim profile, can be mounted vertically
• Allows for immediate backfill
• Zero halogen, fire resistant and non armoured types are also available

SPS Heat Shrink Joints 4 Core PILC to PILC

SPS Part Number	Cable Range	Voltage
SPAP 16-35-4	16-35sqmm	600/1000V
SPAP 50-95-4	50-95sqmm	600/1000V
SPAP 120-150-4	120-150sqmm	600/1000V
SPAP 185-300-4	185-300sqmm	600/1000V

Instruction - Heat Shrink Joints 4c PILC SWA STA 600-1000V

Heat Shrink Joints 4 Core PILC 16-35sqmm - Joint Kit SPAP16-35-4

Heat Shrink Joints 4 Core PILC 50-95sqmm - Joint Kit SPAP50-95-4

Heat Shrink Joints 4 Core PILC 120-150sqmm - Joint Kit SPAP120-150-4

Heat Shrink Joints 4 Core PILC 185-300sqmm - Joint Kit SPAP185-300-4
