Explosion Proof Cable Glands - Prysmian Barrier Glands (424TP) for Lead Sheathed OCMA Cables

Explosion Proof Barrier Cable Glands

Zone 1 & Zone 2 Hazardous Areas (ATEX Certified)

Prysmian BICC BICON Cable Glands

Ex d Cable Glands

Prysmian BICON BARR-PB Ex d IIC - 424TP Series



Prysmian Brass Barrier Glands, Explosion Proof (EEx d) for Lead Sheathed OCMA Cables - Prysmian 424TP Lead Sheath Explosion Proof Cable Gland

Prysmian 424TP Barrier glands are suitable for cable glanding and terminating OCMA lead sheathed power cables in Zones 1, 2, 21 and 22 hazardous areas.. The BARR-PB Ex d llC 424TP series aids the control of migrating gasses and includes bicaseal putty.

Prysmian BICON Explosion Proof Cable Glands for Hazardous Areas: Certified ΙΙ 2GD, Ex e ΙΙ & Ex d ΙΙC under ATEX directive 94/9/EC

Prysmian 424TP Barrier Glands Features & Benefits:

• Brass indoor and outdoor cable gland for use in Zone 1 and Zone 2 hazardous areas
• Suitable for circular, galvanised steel single wire armour cables with extruded polymeric oversheath and Lead Inner sheat
• Achieves IP66 seal onto cable and to enclosure with suitable sealing washer or thread sealant
• Provides mechanical cable retention and electrical continuity through the armour wire termination
• Provides electrical continuity to the inner lead sheath
• Suitable for most climatic conditions - weatherproof and waterproof
• Standard and Nickel plated versions available

Barrier Gland Applications for Hazardous Areas - Prysmian 424TP

• Zones 0, 1 & 2 with Ex ia IIA, B & C equipment
• Zones 1 & 2 with Ex ib IIA, B & C equipment
• Zones 1 & 2 with Ex d IIA, B & C equipment with any volume
• Zones 1 & 2 with Ex e II equipment
• Zones 1 & 2 with Ex p II equipment
• Zone 2 with Ex nA II equipment
• Zone 2 with Ex nR II equipment
• Zones 21 & 22 with Extd A21

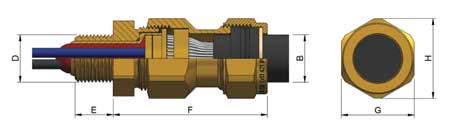

Prysmian 424TP Series Barrier Cable Gland Specifications

Gland Reference	Cable Dimensions (mm)					Gland Dimensions
Design Ref	Size Metric	Max dia.	Max No.	Overall Ø (B)		D	E	F	Hexagon
				Min	Max				A/F G	A/C H
Prysmian 424TP-52	20S	11	30	8	15.8	M20 x 1.5	15	67	30.5	34
Prysmian 424TP-53	20	11	30	11.7	20.8	M20 x 1.5	15	64	30.5	34
Prysmian 424TP-85*	25	16	42	17	27.2	M25 x 1.5	15	65	37.6	42.2
Prysmian 424TP-55	25	16	42	17	27.2	M25 x 1.5	15	65	37.6	42.2
Prysmian 424TP-86*	32	22.1	60	19	33.5	M32 x 1.5	15	77	47.3	53.6
Prysmian 424TP-56	32	22.1	60	19	33.5	M32 x 1.5	15	77	47.3	53.6
Prysmian 424TP-57	40	28.2	100	26.5	39.9	M40 x 1.5	15	77	56.4	61.5
Prysmian 424TP-89*	50	37.1	200	36	52.6	M50 x 1.5	15	84	70.1	77.2
Prysmian 424TP-59	50	37.1	200	36	52.6	M50 x 1.5	15	84	70.1	77.2
Prysmian 424TP-61	63	48.4	400	46.5	65.3	M63 x 1.5	15	90	80	87.4
Prysmian 424TP-63	75	58.6	400	58	78	M75 x 1.5	15	96	98.8	109.2
Prysmian 424TP-64	85	65.8	400	68	88	M85 x 2	20	108	115	126

*Sizes 85, 86, 35, 36 & 39 are designated BARR-PBS and are designed to suit smaller diameter armour wires.

Prysmian Barrier Gland (Explosion Proof) BICON 424TP53 - 8.9-15.7mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP55 - 13.0-19.3mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP56 - 17.0-25.4mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP57 - 24.1-30.0mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP59 - 29.0-41.9mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP61 - 40.9-52.8mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP63 - 49.8-59.9mm

Prysmian Barrier Gland (Explosion Proof) BICON 424TP64 - 58.9-73.9mm

Prysmian Cable Components - Cable Glands, Joints, Cleats & Terminations LV HV
