3 Core Polymeric (XLPE EPR) 33kV-36kV Heat Shrink Cable Termination Kits











SPS High Voltage Cable Termination Kits 6.6kV, 11kV, 33kV



3 Core Polymeric (XLPE EPR) 33kV-36kV



Heat Shrink Cable Termination Kits 35-400sqmm



High Voltage (HV) Cable Joints & Cable Terminations – Overview

T&D UK stock and distribute HV high voltage cable joint and cable termination kits for 3.3kV, 6.6kV, 11kV, 15kV, 33kV and Triplex cable systems.



This includes 33kV heat shrink joints and cable termination kits for single and 3 core high voltage power cables with XLPE, EPR or PILC insulation, copper wire screen or copper tape screens, unarmoured or armoured (AWA SWA) and with or without lead sheath cover.



SPS 33kV heat shrink 3 core polymeric cable terminations are tested and qualified as outlined in Cenelec standards HD 628 S1 and 629.1 S2 : 2006.

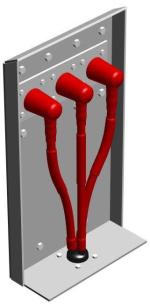

Pictured : 33kV Heat Shrink Cable Terminations. Suitable for terminating 33kV and 36kV 3 Core Polymeric (XLPE & EPR) Cables, both indoor and outdoor kits available for high voltage cables.





SPS High Voltage 33kV Cable Termination Kit List (Typical)

33kV 3 Core Cables Indoor

• Anti-track heat shrink core tubes x 3
• Stress control heat shrink tubes x 3
• Yellow stress relief tape for screen ends x 3
• Red mastic sealing tape x 1
• Cable cleaning and de-greasing wipes x 3
• Box, label, jointing instructions x 1
• 3 core heat shrink cable breakout boot

Note : Outdoor 33kV cable terminations include rain sheds.

• Cable Termination Accessories 33kV 36kV
• Cable Gland, Bushing Boots, Screen Earth Kit, Lugs (Crimp or Mechanical)
