Resin Cable Joints, Single Core Power Cables BS5467 - Straight Cable Joints

Resin Cable Joints

Single Core Power Cables BS5467 BS6883

Straight Cable Joints 600/1000v

3M Scotchcast low voltage resin cable joints are suitable for cable jointing single core XLPE (aluminium wire armoured), EPR (galvanised wire braided) and unarmoured power cables, 600/1000v.

Aluminium Wire Armour Cables

Aluminium wire armour (AWA) is used in BS5467 low voltage single core XLPE insulated power cables because it is non-magnetic - electric currents passing through cables produce magnetic fields which induce a secondary electric current in steel wire armoured (SWA) cables (eddy currents) causing overheating on AC systems.

Resin cable joints include AWA earth continuity kits for earth fault protection.

Pictured : BS5467 Cable Construction

1. PVC Cable Sheath
2. AWA Aluminium Wire Armour
3. PVC Bedding
4. XLPE Insulation
5. Class 2 Copper Stranded Conductor

Resin Cable Joints, Single Core Power Cables BS5467 - Straight Cable Joints

Cable Joint	Resin Volume	Single Core Cable Diameter
		Max	Min
LA21	173CC	26mm	8mm
LA22	400CC	32mm	14mm
LA23	673CC	37mm	23mm
LA24	1164CC	51mm	28mm
LA25	2909CC	60mm	33mm
LA26	6364CC	80mm	48mm
LA27	9545CC	90mm	45mm

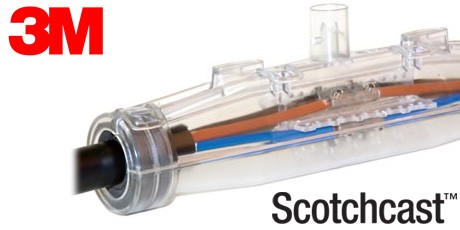

Pictured : 3M Cable Joints. Scotchcast resin cable joints are suitable for jointing all types of armoured cables (wire braided and wire armoured) 600/1000v.



3M Cable Joint - BS5467 Single Core XLPE AWA 10-95sqmm - LA22

3M Cable Joint - BS5467 Single Core XLPE AWA 120-185sqmm - LA23

3M Cable Joint - BS5467 Single Core XLPE AWA 240-400sqmm - LA24

3M Cable Joint - BS5467 Single Core XLPE AWA 500-630sqmm - LA25

3M Cable Joint - BS5467 Single Core XLPE AWA 800-1000sqmm - LA26

Armour Earth Continuity for XLPE/AWA Single Core Joints

3M Cable Joint - BS6883 EPR, GSWB, Single & Multicore Cable Joints
