BICC Bicon CW40 432LSF57 Prysmian BICON Aluminium Cable Glands

CW Aluminium Cable Glands - LSF

LSF BICC BICON Gland Kit CW40

Prysmian 432LSF57

Low Smoke Zero Halogen Cable Glands

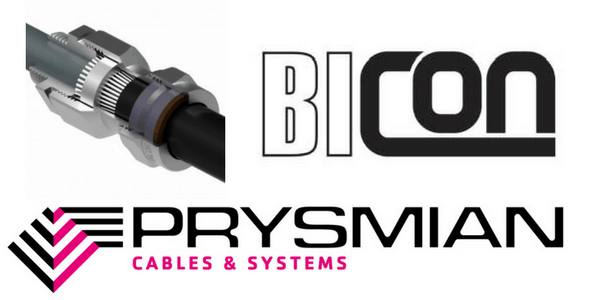

Prysmian BICC BICON Aluminium Cable Gland Kit - BICON 432LSF57

CW40 BICON Cable Gland Pack - 432LSF57

CW40 Aluminium BICON Cable Gland Suits 29.0-39.9mm Cable Diameters

• Gland Entry Thread M40 x 1.5mm
• Gland Entry Thread Length 15mm


Prysmian BICON LSF Low Smoke and Fume (Zero Halogen) cable gland terminations suit LV XLPE AWA (aluminium wire armoured) single core power cables to BS6724 and BS7835. Prysmian BICON cable glands are rated to IP66 with use of suitable washer or thread sealant. Standard industrial aluminium cable glands are also available for terminating 600/1000 volt BS5467 XLPE PVC sheathed power cables.

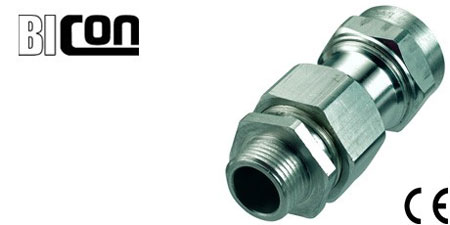

Aluminium Cable Gland Kit - BICON 432LSF57

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Aluminium
• Cable Gland Size: CW40
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

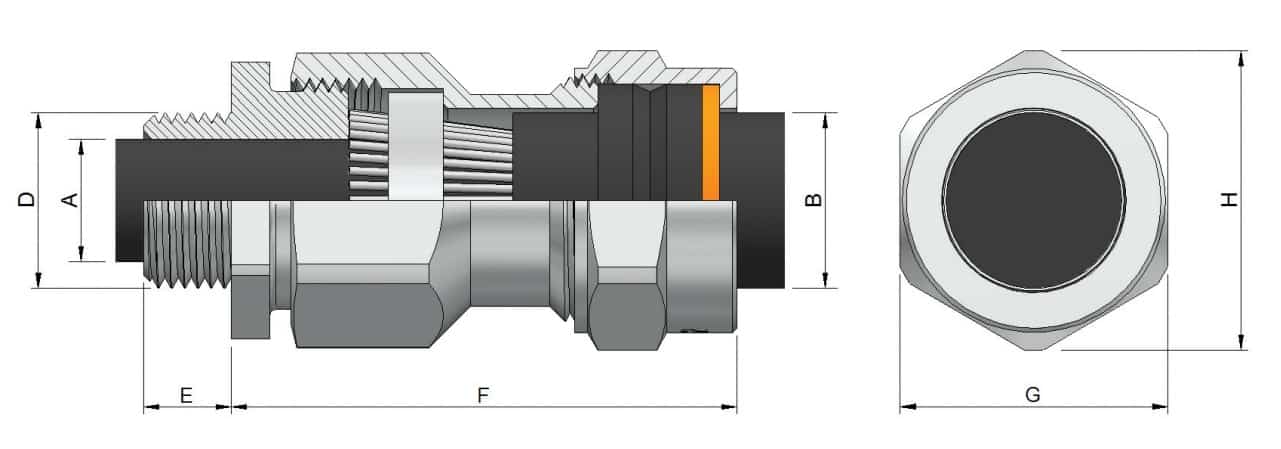

• Under Armour Cable Diameter (A): 32.1mm Maximum
• Overall Cable Diameter (B): 29.0mm Minimum
• Overall Cable Diameter (B): 39.9mm Maximum
• Armour Wire Diameter: 1.6/2.0mm
• Entry Thread (D) : M40 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 59mm
• Hexagon A/F (G): 56.4mm
• Hexagon A/C (H): 61.5mm
• Order Code: CW40 432LSF-57
• Industrial Application Also: Prysmian CW40 Cable Gland KA22-57



CW40 432LSF57 Prysmian BICON Aluminium Cable Glands
