Heat Shrink Cable Repair Sleeves, 140-40mm Cable Dias - 3M HDCW140/40

3M3M Heat Shrink Wraparound Cable Sheath Repair

Repairing Damaged Cables Using Heat Shrink Cable Repair Sleeves

3M HDCW 140-40 Heat Shrink Cable Repair

3M HDCW 140-40 Heat Shrink Cable Repair Sleeves Features and Benefits

  • Quick and easy cable sheath repair kits for low and high voltage networks.
  • Maximum protection against electrical and mechanical stress.
  • Excellent bonding to standard cable jacket sheaths.

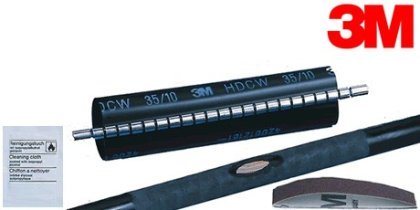

3M HDCW140/40 Heat Shrink Wraparound Cable Repair Kits

3M HDCW140-40 Heat Shrink Cable Repair Sleeves Application Guide

3M Part Number Length Inches (mm) Primary Insulation 600/1000v max./min Conductor AWG/MCM Jacket Repair Use Range max./min inces (mm) Sleeve expanded diameter inches (mm) Sleeve recovered diameter inches (mm)
HDCW 140/40-1000  39.4 (1000) N/A  5.51-1.57 (140-40)  5.71 (145) 1.26 (32)
HDCW 140/40-1200  47.2 (1200) N/A  5.51-1.57 (140-40) 5.71 (145) 1.26 (32)



Pictured: 3M HDCW140-40 Cable Sheath Repair Kit Installation Steps

3M HDCW140 40 Cable Sheath Repair Kit Installation Steps

Adobe Heat Shrink Cable Repair Sleeves, 40-140mm Cable Dias - 3M HDCW14040
