Trojan Maxi 4 Way Modular System Isolators

Lucy Lighting Trojan Maxi isolators provide a four-way modular street lighting isolator system with total flexibility for up to 4 DIN modules and sophisticated control such as time clocks.

Pictured: Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System

Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System

Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System - Features & Benefits

  • 32A double pole switch with up to 3 fuse holders or MCBs
  • Double pole isolation
  • Moulded din rail for up to 4 din modules
  • Options of switch and fuse holders or MCBs
  • High grade fire retardant ABS isolator
  • Safety interlock slide allowing the unit to be locked in the 'OFF' position
  • Clear lockable hinged lid showing the ON/OFF position
  • Isolators available with plastic or brass gland plate
  • 4 cable exit holes
  • Option of extension trough allowing looping up to 35sqmm cables
  • Incoming gear tray
  • Up to 5 terminal blocks available
Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System
Trojan Maxi (TW03) 3 head column 32A isolator, 3 x BS88 fuse carriers, internal earth & neutral block, small 2-way extension trough and brass plate with:
Part No Description  Fuseways
TW03-EB2N1-EF-G12 2 x 20mm grommets 3
TW03-EB2N1-EF-G25 2 x 20 tubes 3
Trojan Maxi (TW03) 3 head column 32A isolator, 3 x BS88 fuse carriers, internal earth & neutral block, large 2-way extension trough with 2TT LNE terminal blocks and brass plate with:
TW03-EB2N1-ED-2T3-G12 2 x 20mm grommets 3
TW03-EB2N1-ED-2T3-G13 2 x 25mm grommets 3
TW03-EB2N1-ED-2T3-G25 2 x 20 tubes 3
TW03-EB2N1-ED-2T3-G26 2 x 25 tubes 3
Trojan Maxi (TW03) 2 head column with 1 spur, 32A isolator, 3 x BS88 fuse carriers, internal earth and neutral block, large 3-way extension trough with 2TT LNE terminal blocks and brass plate with:
TW03-EB2N1-EC-T3-G52 2 x 25mm and 1 x 20mm grommet 3
TW03-N1-ED-EE-2T5-G53 3 x 25mm grommets 3
TW03-EB2N1-ED-EE-2T5-G61 3 x 25mm tubes 3
TW03-EB2N1-ED-EE-2T5-G67 3 x 20mm tubes 3
TW03-EB2N1-ED-EE-2T5-G68 3 x 20mm grommets 3
TW03-EB2N1-ED-EE-2T5-G65 3 x BW20 brass glands 3



Lucy Isolators - Trojan Maxi Street Lighting Isolators - 4 Way System - Dimensions

  • Height 172mm
  • Width 94mm
  • Depth 84mm

Lucy Isolators are also available with a 2 Way System - Trojan Mini and 3 Way System - Trojan Midi.

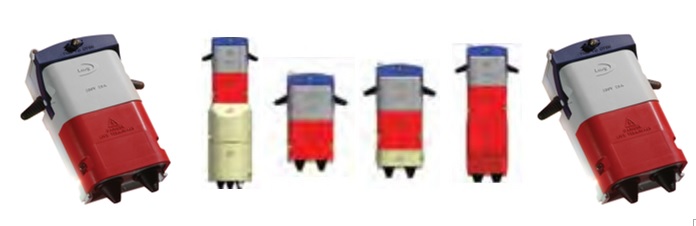

T&D together with Lucy can offer a range of Lucy Street Lighting Cut Outs – Titan Single & Double Pole Cut Outs.
