Cable Hangers (J Type) - CH2W3 - 2 Way, 76-100mm Cable Support

Ellis Patents CH2W3 Cable Hanger Cable Hangers - J Hangers

Ellis Patents

CH2W3





Ellis Patents Cable Hangers CH2W3 (J type) are manufactured from mild steel flat bar, spot welded to a mounting plate and hot dipped galvanised to BS729:1971.

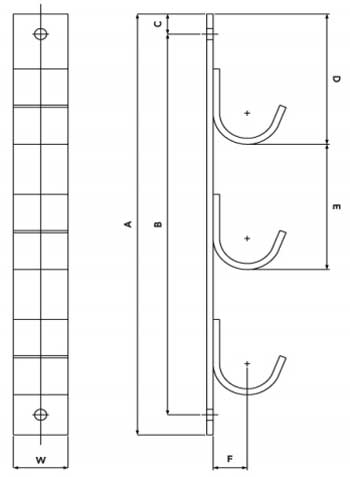

Ellis Patents CH2W3 J Type Cable Hangers - Design Specification

  • Maximum Cable Dia - 76-100mm
  • Number of Ways - 2 Cables
  • A - 345mm
  • B - 305mm
  • C - 20mm
  • D - 145mm
  • E - 160mm
  • F - 62mm
  • W - 50mm
  • Cable Hanger Thickness 6mm
  • Cable Fixing Holes Dia. mm - 13mm
  • Weight - 1900g
  • SWL (Load Capacity) - 250kgs

Cable Hangers J Type



Ellis Patents Cable Hanger Selection Table

Cable Hangers Grid



See also : Ellis Patents Pegasus - Non-Metallic Nylon Cable Hangers
