Valhalla, the £15 million ride at Blackpool Pleasure Beach, is now 25 percent more power efficient thanks to ABB’s automatic power factor correction (PFC) equipment.

The Need

Designed to be the world’s biggest and most spectacular ‘dark’ ride, Valhalla places a very large demand on the Pleasure Beach’s dedicated three-phase power supply – drawing around 2000A per phase on initial installation.

Without PFC correction the network could have required a costly upgrade.

Following the installation of the ABB automatic power factor correction equipment, comprising two banks of capacitors totalling 900kVAr, the supply current was reduced to 1500A per phase, which means that the power required to operate the ride was reduced from 1.5MVA to a little over 1MVA –
a reduction of approximately 25 percent.

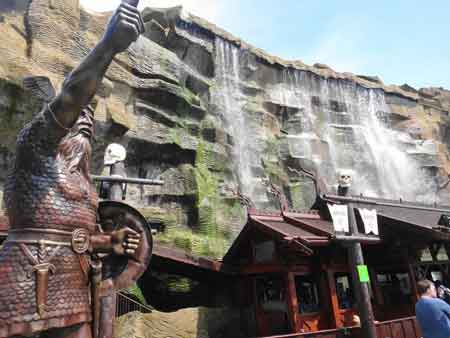

Pictured: The Valhalla Dark Ride Blackpool Pleasure Beach

Saving Electricity

It is estimated that during the peak months for the ride from Easter to October/November the ABB PFC equipment is saving electricity costs of £1,500 to £2,000 per month, so it should pay for itself in under three years.
