BICC Bicon BW50 LSF Cable Gland Kit (Prysmian 420LSF-59)

BW Cable Glands - LSF

LSF BICC BICON Gland Kit BW50

Prysmian 420LSF-59





Prysmian BICON LSF Cable Gland Kit - Ref LSF50BW

Cable Gland Entry Thread M50

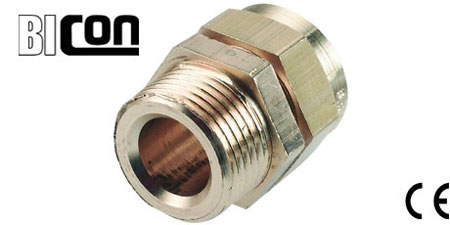

Prysmian Bicon 420LSF-59 (BW50) BW LSF cable glands with 50mm entry thread enable cable termination of armoured (SWA) low smoke zero halogen cables in dry indoor applications  – the BW50 LSF cable gland kit provides mechanical cable retention and electrical continuity via the wire armour locking mechanism for under armour diameters up to 44.0mm.

LSF Cable Gland Kits BW50 c/w BW BICON Brass Gland, Brass Earth Tag, Brass Locknut and LSF Gland Shroud in accordance with BS6121.

BW BICON cable glands are suitable for low voltage indoor cable termination of XLPE insulated power cables to BS6724, including low smoke and fume (LSF) and low smoke zero halogen (LSOH) cable types.

Prysmian LSF BW cable glands comply with LU Standard 1-085 for installation in all London Underground sub- surface locations. LUL product code 1968.

BW50 LSF Cable Gland Kit

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: BW50
• Quantity Per Kit: 1 Cable Gland
• Cable Gland Type: Brass
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

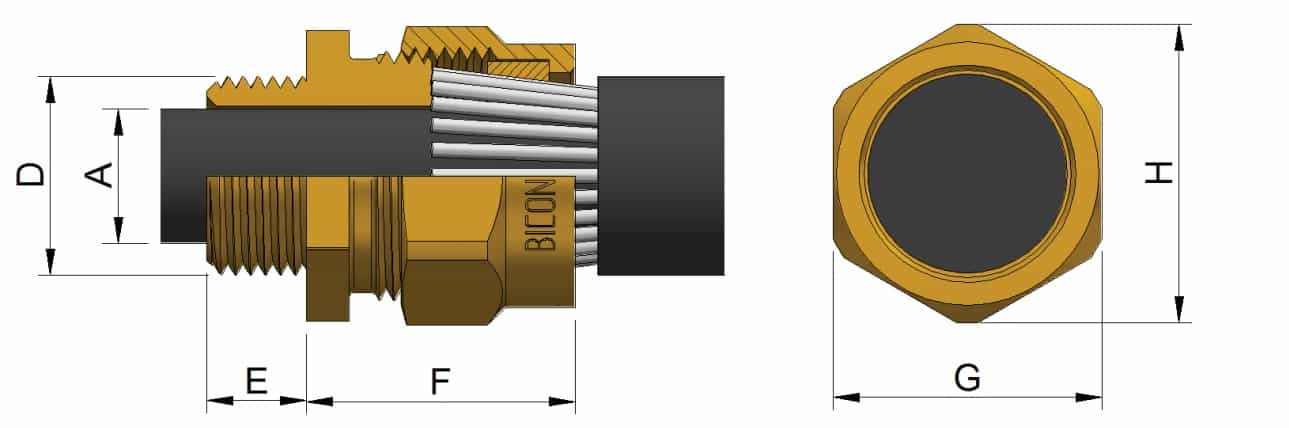

• Under Armour Cable Diameter (A): 44.0mm Maximum
• Armour Wire Diameter: 2.0/2.5mm
• Entry Thread (D) : M50 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 36mm
• Hexagon A/F (G): 70.1mm
• Hexagon A/C (H): 77.2mm
• Order Code: BW20S 420LSF-59
• Industrial Application Also: Prysmian BW50 Cable Gland KA410-59



BICC Bicon BW50 LSF Cable Gland Kit (Prysmian 420LSF-59)

BW50 LSF BICON Glands
