CW50S Aluminium Cable Gland Kit - Prysmian 422AL58 Cable Dias 38.0-46.2mm

CW Cable Glands - Aluminium

Prysmian CW50S 422AL58

CW Aluminium Cable Glands for Indoor - Outdoor

Single Core BS5467 XLPE AWA 600/1000v Cables



Prysmian CW50S 422AL58 Aluminium Cable Gland Kit is suitable for both indoor and outdoor cable termination of BS5467 single core XLPE insulated AWA (aluminium wire armoured cables) with cable diameters 38.0 to 46.2mm.

Prysmian CW50S 422AL58 Aluminium Cable Gland kits feature M50 cable gland entry thread, BS6121 tested, complete with seperate cable gland armour locking ring for checking electrical continuity.

Cable gland kit achieves IP66 ingress protection rating with use of suitable sealing washer or thread sealant at cable gland interface.



CW50S 422AL58 Aluminium Cable Gland Kit

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Aluminium
• Cable Gland Size: CW50S
• Quantity Per Kit: 1 Gland

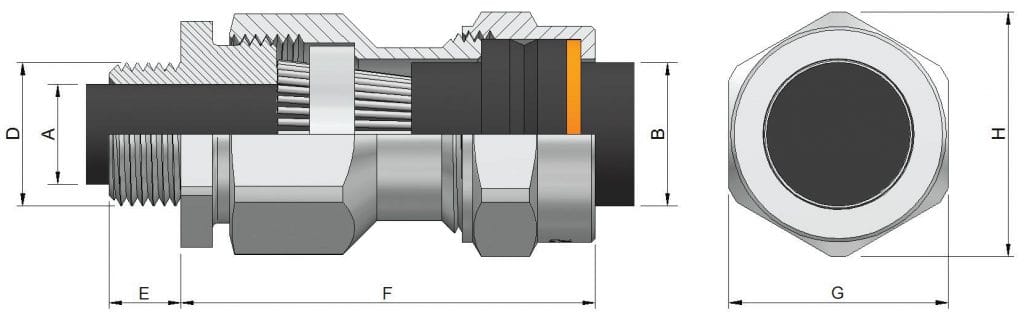

• Under Armour Max ∅ (A): 38.1mm
• Cable Diameter (B): 38.0-46.2mm
• Armour Wire ∅: 2.0-2.5mm
• Entry Thread (D) : M50 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 64mm
• Hexagon A/F (G): 65.5mm
• Hexagon A/C (H): 72.1mm
• Order Code: Prysmian Bicon KA422-58

Prysmian Cable Gland Kit, CW50S - 422AL58 - Gland Pack Contents

• Aluminium CW50S cable gland
• Aluminium CW50S cable gland lock nut
• Aluminium CW50S cable gland earth tag
• Cable gland shroud

LSF CW aluminium cable gland kits are available for zero halogen, low smoke and fume cable terminations.
