C Tap Copper Connectors & Crimps - Bright Surface Finish

C Tap Copper Connectors & Crimps - Bright Surface Finish

Cembre C Tap Crimps





Cembre C Tap copper crimp connectors are suitable for establishing earthing systems and tapping off from low voltage overhead lines - C tap crimps accomodate copper cable conductors including run and tap offs, 2.5sqmm to 240sqmm copper conductors. Tin plated and bright surface finish C Tap copper connectors are available.

Typical "C" Tap copper connectors applications - copper tap connections, joint connections and jointing two parallel running conductors.

Cembre copper "C" Tap connectors are manufactured from high purity copper profiles and are suitable for a variety of uses. Each copper connectors is marked as follows :

• Cembre trade mark
• Cembre reference number
• Copper conductor size-run
• Copper conductor size-tap
• Number of crimps
• Cembre die reference

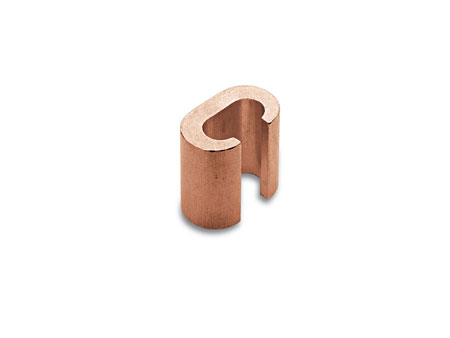

Pictured : Cembre C Tap Connectors (Bright Surface Finish)

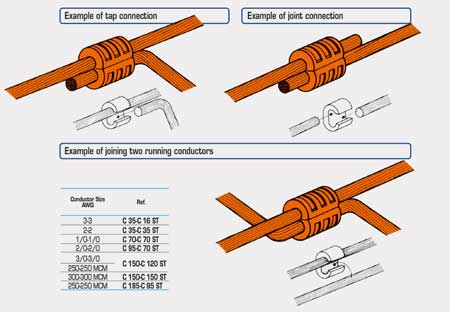

Pic : Cembre C Tap Crimp Connectors -Stranded Copper Earthing Cables

C Tap Copper Connectors Crimps - 6-2.5sqmm Run, 6-1.5sqmm Tap

C Tap Copper Connectors Crimps -10sqmm Run, 10-1.5sqmm Tap

C Tap Copper Connectors Crimps -16sqmm Run, 16-1.5sqmm Tap

C Tap Copper Connectors Crimps - 25-16sqmm Run, 10-1.5sqmm Tap

C Tap Copper Connectors Crimps - 25sqmm Run, 25-16sqmm Tap

C Tap Copper Connectors Crimps - 40-35sqmm Run, 16-1.5sqmm Tap

C Tap Copper Connectors Crimps - 40-35sqmm Run, 40-25sqmm Tap

C Tap Copper Connectors Crimps - 50sqmm Run, 25-10sqmm Tap

C Tap Copper Connectors Crimps - 50sqmm Run, 25-4sqmm Tap

C Tap Copper Connectors Crimps - 50sqmm Run, 50-35sqmm Tap

C Tap Copper Connectors Crimps - 70-63sqmm Run, 25-1.5sqmm Tap

C Tap Copper Connectors Crimps - 70-50sqmm Run, 40-4sqmm Tap

C Tap Copper Connectors Crimps - 70-50sqmm Run, 70-35sqmm Tap

C Tap Copper Connectors Crimps - 100-95sqmm Run, 40-4sqmm Tap

C Tap Copper Connectors Crimps - 100-95sqmm Run, 70-40sqmm Tap

C Tap Copper Connectors Crimps - 100-95sqmm Run, 100-63sqmm Tap

C Tap Copper Connectors Crimps - 125-110sqmm Run, 125-25sqmm Tap

C Tap Copper Connectors Crimps - 160-150sqmm Run, 125-25sqmm Tap

C Tap Copper Connectors Crimps - 150sqmm Run, 150-63sqmm Tap

C Tap Copper Connectors Crimps - 185sqmm Run, 100-16sqmm Tap

C Tap Copper Connectors Crimps - 185-120sqmm Run, 185-120sqmm Tap

C Tap Copper Connectors Crimps - 240-150sqmm Run, 120-95sqmm Tap
