Roxtec RSX Transit Frame

Roxtec RSX kits consist of a round penetration and sleeve solution attached to the construction through expansion, when welding is not allowed or desired.

The specially designed expansion sleeve has a rubber gasket on the outside and as the bolts on the sleeve are tightened it expands in the hole to firm attachment. Into the opening of the sleeve is fitted an R frame or an RS seal.

Pictured: Roxtec RSX Cable Transit Frame

Pictured : Installation of Roxtec Cable Transit Frame RSX Type

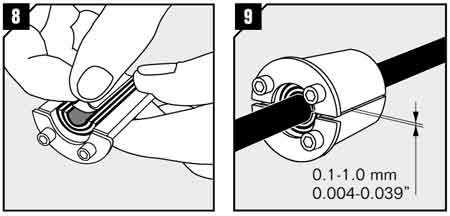

8. Adapt the RS seal to the cable/pipe by peeling off layers from the halves until you reach the gap seen in Pic.9. The halves may not differ by more than one layer.

9. Try to achieve a 0.1-1.0mm gap between the two halves when held against the cable or pipe.

Roxtec RSX Cable Transit Frame

Kit	Packing space (mm)	Aperture dim. ± 1 mm (0.0394")		External dimensions sleeve		Weight sleeve
		Ø (mm)	Ø (in)	ØxD (mm)	ØxD (in)	(kg)	(lb)
R frame galvanized
R X 100 galv/galv	60 x 60	146	5.748	155 x 55	6.102 x 2.165	2.2	4.850
R X 125 galv/galv	80 x 80	171	6.732	180 x 55	7.087 x 2.165	2.8	6.173
R X 150 galv/galv	90 x 90	200	7.874	209 x 55	8.228 x 2.165	3.5	7.716
R X 200 galv/galv	120 x 120	251	9.882	260 x 55	10.236 x 2.165	4.6	10.141
R frame acid proof stainless steel
R X 75 AISI 316/galv	40 x 40	116	4.567	125 x 55	4.921 x 2.165	1.6	3.527
R X 100 AISI 316/galv	60 x 60	146	5.748	155 x 55	6.102 x 2.165	2.2	4.850
R X 125 AISI 316/galv	80 x 80	171	6.732	180 x 55	7.087 x 2.165	2.8	6.173
R X 150 AISI 316/galv	90 x 90	200	7.874	209 x 55	8.228 x 2.165	3.5	7.716
R X 200 AISI 316/galv	120 x 120	251	9.882	260 x 55	10.236 x 2.165	4.6	10.141
