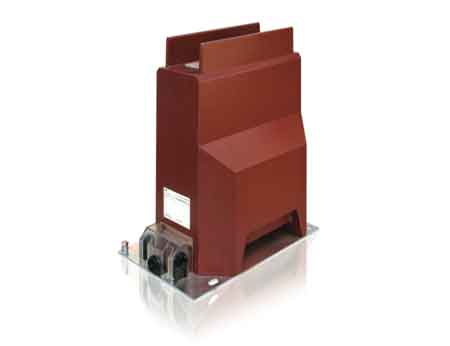

ABB TPU7 indoor current transformers (CT's) for MV medium voltage power applications are cast in epoxy resin and designed for insulation voltages up to 36kV 38.5kV 40.5kV  . The 36kV 38.5kV 40.5kV indoor medium voltage current transformers have the same dimensions as the 11kV-12kV range of indoor transformers.

ABB TPU7 Indoor Current Transformers for MV Medium Voltage Power

Highest Voltage for Transformer	36kV 38.5kV 40.5kV
Power Frequency Test Voltage 1 Min	70kV, 80kV and 90kV
Lightning Impulse Test Voltage	120kV, 180kV upto 200kV
Rated Primary Current	10-2500Amps
Rated Short-Time Thermal Current	2 up to 100kA 1s
Reconnectable (Primary 400-800Amps)	Primary or Secondary
Rated Primary Voltages	36kV 38.5kV 40.5kV
Rated Primary Currents	10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A, 150A, 200A, 300A, 400A, 500A, 600A, 750A, 1000A, 1250A, 1500A, 2000A, 2500A, 3000A and 3200A
Transformer Standards	IEC, VDDE, ANSI, BS, GOST and CSN
Indoor CT MV Transformers Protection	IP40

ABB TPU7 MV medium voltage current transformers are designed as single-turn or multi-turn versions, with one transformer ratio or with double ratio having the possibility to be reconnectable on the primary or secondary medium voltage MV power supply side.

The number of secondary windings (from 1 to 6 - maximum 12 secondary terminals - 2 rows), depends on the combination of the technical parameters (such as accuracy class, burden, short-circuit current, overcurrent factor) and the actual current transformer size.
