ABB TPU6 Indoor Current Transformers (CT) MV Medium Voltage 24kV 25kV

ABB TPU MV Medium Voltage Current Transformers

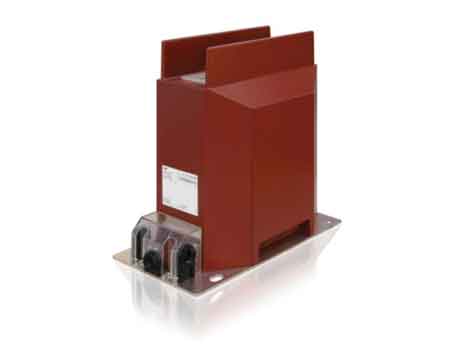

ABB TPU6 Indoor Current Transformers (CT's)

24kV 25kV


ABB TPU6 indoor current transformers (CT's) for MV medium voltage power applications are cast in epoxy resin and designed for insulation voltages up to 24-25kV. The 24-25kV indoor medium voltage current transformers have the same dimensions as the 24-25kV range of indoor transformers.

ABB TPU6 Indoor Current Transformers for MV Medium Voltage Power

Highest Voltage for Transformer	24kV 25kV
Power Frequency Test Voltage 1 Min	50kV to 55kV
Lightning Impulse Test Voltage	up to 125kV
Rated Primary Current	10-3200Amps
Rated Short-Time Thermal Current	2 up to 100kA 1s
Reconnectable (Primary 400-800Amps)	Primary or Secondary
Rated Primary Voltages	24kV 25kV
Rated Primary Currents	10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A, 150A, 200A, 300A, 400A, 500A, 600A, 750A, 1000A, 1250A, 1500A, 2000A, 2500A, 3000A and 3200A
Transformer Standards	IEC, VDDE, ANSI, BS, GOST and CSN
Indoor CT MV Transformers Protection	IP40

ABB TPU6 MV medium voltage current transformers are designed as single-turn or multi-turn versions, with one transformer ratio or with double ratio having the possibility to be reconnectable on the primary or secondary medium voltage MV power supply side.

The number of secondary windings (from 1 to 6 - maximum 12 secondary terminals - 2 rows), depends on the combination of the technical parameters (such as accuracy class, burden, short-circuit current, overcurrent factor) and the actual current transformer size.



ABB Current Transformers O&M Manual

ABB MV Medium Voltage Transformers Presentation

ABB TPU6 Indoor Current Transformers (CT) MV Medium Voltage 24KV 25KV

Instruction - ABB TPU6 Indoor Current Transformers (CT) MV Medium Voltage 24kV 25kV
