ABB TTR 6x Medium Voltage MV Indoor Bushing CT's

Up to 25kV



ABB TTR6x medium voltage current transformers are cast in epoxy resin for MV insulation up to 25kV - ABB TTR6x medium voltage transformers are configured as bar-type, with either one or more transformer ratios (possibility to change over the meddium voltage MV secondary side) and perform the function of a bushing when installed on the switchboard.

The ABB TTR6x indoor bushing current transformer is designed with either 1 or 2 secondary transformer windings and depending on the combinagtion of parameters (accuracy class, burden, short circuit current, overcurrent factor) with the possibility to choose from various sizes of the medium voltage transformer.

The secondary MV transformer windings are used for measurement or protection purposes - one transformer terminal of each secondary transformer winding in use and one terminal of short-circuited and not used medium voltage winding have to be earthed during the transformer operation. The seoondary windings are lead out into a cast-type secondary terminal board, covered with plastic cover which may be sealed. The ABB transformer can be mounted in any position for efficient and reliable MV medium voltage performance. The ABB transformer is fixed by using four screws.

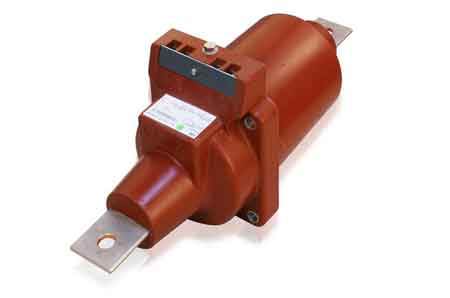

ABB TTR 6x Current Transformers CT



ABB TTR 6x MV Indoor Bushing Current Transformer Features
Highest Voltage For Equipment 24kV
Power Frequency Test Voltage, 1min 50kV
Lighting Impulse Test Voltage 125kV
Rated Continuous Thermal Current 100A - 2500A
Rated Short Time Thermal Current 60kA - 100kA






ABB TTR 6x Current Transformer

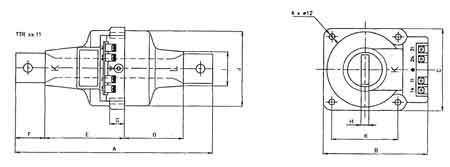

ABB TTR 6x. xx Indoor Busing Current Transformer Specifications
V* Type Rated Curr-ent Dimensions W **
A B C D E F G H H∞

ØI

 ØJ K ØL
25 kV ABB TTR 61.11 To 600  A 620  mm 224 mm 180 mm 238 mm 262 mm 60 mm 30 mm 16 mm 6 mm 71 mm 166 mm 146 mm 170 mm 14  kg
ABB TTR 62.11 To 300  A 680  mm 224 mm 180 mm 298 mm 262 mm 60 mm 30 mm 16 mm 6 mm 71 mm 166 mm 146 mm 170 mm 21  kg
ABB TTR 63.11 750A       -  1250 A 690  mm 224 mm 180 mm 238 mm 262 mm 95 mm 30 mm 20 mm 10 mm 71 mm 166 mm 146 mm 170 mm 15  kg
ABB TTR 64.11 1500 A 700  mm 274 mm 230 mm 238 mm 262 mm 100 mm 30 mm 16 mm 20 mm 110 mm 216 mm 190 mm 220 mm 23  kg
ABB TTR 65.11 2000 A 700  mm 274 mm 230 mm 238 mm 262 mm 100 mm 30 mm 20 mm 20 mm 110 mm 216 mm 190 mm 220 mm 32  kg
ABB TTR 66.11 2500 A 720  mm 274 mm 230 mm 238 mm 262 mm 110 mm 30 mm 20 mm 20 mm 110 mm 216 mm 190 mm 220 mm 35  kg

*V=Insulation Voltage  **W=Weight


ABB indoor bushing current transformers for MV medium voltage service are conformant to following specifications: IEC, VDE, ANSI, BS, GOST and CSN.
