ABB CLMD Capacitors LV Low Voltage - CLMD53

ABB LV Low Voltage CapacitorsABB Power Products

ABB CLMD - CLMD53

ABB Capacitors for LV Low Voltage Power Factor Correction



The CLMD53 capacitor unit is designed in such a way to give the highest level of reliability, safety, performance and power all in a robust and compact fashion.

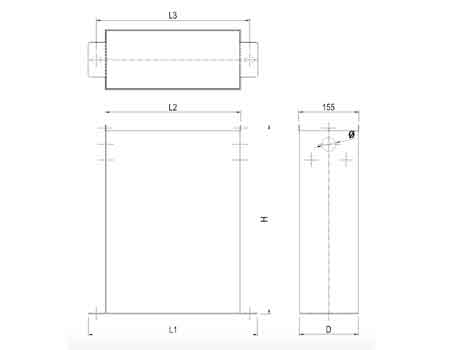

ABB CLMD53 Low Voltage Capacitor - Dimensions



ABB CLMD53 Low Voltage Capacitor Dimensions
Type H L1 L2 L3 D
ABB CLMD53 310 436 350 396 152

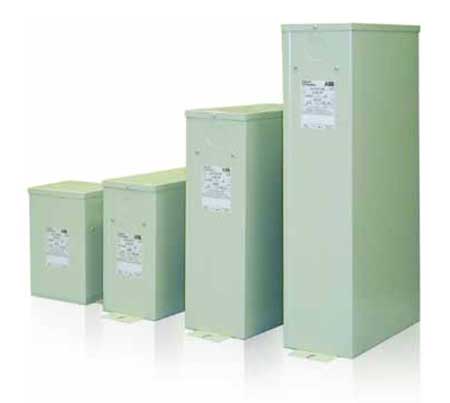

ABB CLMD53 Low Voltage Capacitor

ABB CLMD53 LV Capacitor Specifications - 50Hz
Reference No. Network Voltage Power Power
  250V 230V
ABB 2GCA280954A0030

250V/230V

28kvar

 24kvar
ABB 2GCA280955A0030

250V/230V

 38kvar 32kvar
  415V 400V
ABB 2GCA280730A0030

415V/400V

 37.5kvar 35kvar

ABB 2GCA280776A0030

 415V/400V  43kvar 40kvar

ABB 2GCA280777A0030

 415V/400V  50kvar 45kvar
  440V

ABB 2GCA280789A0030

 440V  30kvar

ABB 2GCA280790A0030

 440V  35kvar

ABB 2GCA280792A0030

 440V  40kvar

ABB 2GCA280794A0030

 440V  50kvar
  460V

ABB 2GCA280805A0030

 460V 35kvar

ABB 2GCA280806A0030

460V

 45kvar
    525V 500V

ABB 2GCA280855A0030

525V/500V

 40kvar 36kvar

ABB 2GCA285290A0030

525V/500V

 50kvar 45kvar
  550V

ABB 2GCA280877A0030

550V

 32kvar

ABB 2GCA280878A0030

 550V 42kvar
  600V

ABB 2GCA280887A0030

 600V 37.5kvar

ABB 2GCA280888A0030

 600V 50kvar
  660V

ABB 2GCA280915A0030

 660V 32kvar

ABB 2GCA280916A0030

 660V 42kvar

ABB 2GCA280917A0030

 660V 53kvar





ABB CLMD43 LV Capacitor Specifications - 60Hz
Reference No. Network Voltage Power Power
  260V 240V
ABB 2GCA280965A0030

260V/240V

25kvar

 21kvar

ABB 2GCA281327A0030

 260V/240V 29kvar 25kvar

ABB 2GCA280966A0030

 260V/240V 36kvar 31kvar
  415V 400V
ABB 2GCA281335A0030

415V/400V

 32kvar 30kvar

ABB 2GCA281341A0030

 415V/400V 37.5kvar 35kvar
  460V

ABB 2GCA280818A0030

 460V  32kvar

ABB 2GCA280819A0030

 460V  40kvar
  480V

ABB 2GCA280828A0030

 480V 30kvar

ABB 2GCA280829A0030

480V

 35kvar
    525V 500V

ABB 2GCA280869A0030

525V/500V

 36kvar 33kvar

ABB 2GCA280870A0030

 525V/500V  48kvar 44kvar
  600V

ABB 2GCA280902A0030

 600V 30kvar
ABB 2GCA280903A0030 600V

35kvar

ABB 2GCA280904A0030

 600V 40kvar

ABB 2GCA280906A0030

 600V 50kvar
  660V

ABB 2GCA280923A0030

 660V 38kvar
