ABB CLMD Capacitors LV Low Voltage - CLMD43

ABB LV Low Voltage CapacitorsABB Power Products

ABB CLMD - CLMD43

ABB Capacitors for LV Low Voltage Power Factor Correction



The CLMD43 capacitor unit is designed in such a way to give the highest level of reliability, safety, performance and power all in a robust and compact fashion.

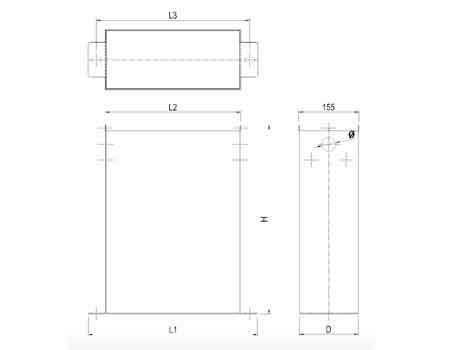

ABB CLMD43 Low Voltage Capacitor - Dimensions



ABB CLMD43 Low Voltage Capacitor Dimensions

Type H L1 L2 L3
ABB CLMD43 275 266 180 226 152

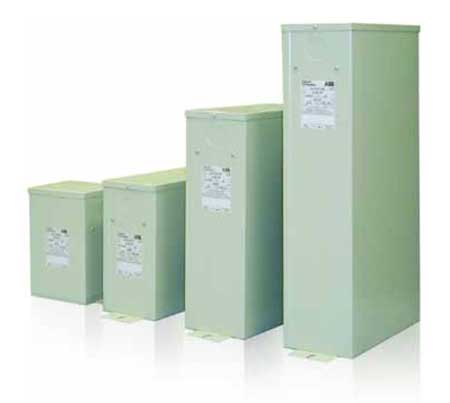

ABB CLMD43 Low Voltage Capacitor

ABB CLMD43 LV Capacitor Specifications - 50Hz

Reference No. Network Voltage Power Power
  250V 230V
ABB 2GCA281321A0030

250V/230V

13kvar

11kvar
ABB 2GCA280953A0030

250V/230V

19kvar 16kvar
  415V 400V
ABB 2GCA280960A0030

415V/400V

22kvar 20kvar

ABB 2GCA280774A0030

415V/400V  27kvar 25kvar

ABB 2GCA280961A0030

415V/400V  32kvar 30kvar
  440V

ABB 2GCA280785A0030

440V  20kvar

ABB 2GCA280744A0030

440V  25kvar
  460V

ABB 2GCA280803A0030

460V 15kvar

ABB 2GCA280804A0030

460V

23kvar
    525V 500V

ABB 2GCA280852A0030

525V/500V

20kvar 18kvar

ABB 2GCA280854A0030

525V/500V

30kvar 27kvar
  550V

ABB 2GCA280876A0030

550V

21kvar
  600V

ABB 2GCA280886A0030

600V 25kvar
  660V

ABB 2GCA280914A0030

660V 21kvar





ABB CLMD43 LV Capacitor Specifications - 60Hz

Reference No. Network Voltage Power Power
  260V 240V
ABB 2GCA280964A0030

260V/240V

17kvar

15kvar
  415V 400V
ABB 2GCA281334A0030

415V/400V

26kvar 25kvar
  460V

ABB 2GCA280815A0030

460V  18kvar

ABB 2GCA280817A0030

460V  27.5kvar
  480V

ABB 2GCA280826A0030

480V 20kvar

ABB 2GCA280827A0030

480V

25kvar
    525V 500V

ABB 2GCA280868A0030

525V/500V

24kvar 22kvar
  600V

ABB 2GCA280900A0030

600V 20kvar
ABB 2GCA280901A0030  600V

25kvar

  660V

ABB 2GCA280922A0030

660V 25kvar
