ABB CEF Indoor Current Limiting Fuses - IEC Standard 3.6/7.2kV-36kV

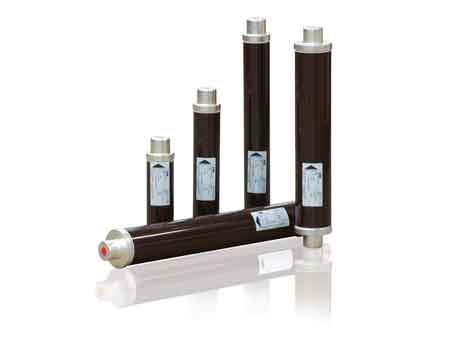

ABB CEF Indoor Current Limiting Fuses are of back-up type to provide electrical circuit protection to medium voltage (MV) and high voltage (HV) cables and systems up to 33kV-36kV.

Low power losses make ABB CEF indoor fuse links especially suitable in compact medium voltage switchgear and for fuse switch disconnectors combinations. ABB CEF fuse design is based on overload spots that significantly reduce fuse structure temperature during interruption process. Additionally, due to a modification of striker pin functionality, that release can be now temperature dependent - Temperature Control Unit (TCU) - increasing application safety for gas insulated panels.

ABB CEF indoor fuses have high breaking capability up to 63kA.

The HRC generation of ABB CEF Medium Voltage Fuse Links are designed and tested according to IEC Publication 60282-1. Dimensionally the ABB fuse links are in accordance with DIN 43625.

ABB CEF Indoor Current Limiting Fuses

ABB CEF Medium Voltage Fuse Links Features

  • Low minimum breaking current
  • Low power losses, specially suitable in compact switchgear and ring main units
  • High breaking capacity
  • High current limitation
  • Type tested acc. to IEC 60282-1
  • Dimensions acc. to IEC 60282-1 and DIN 43625
  • Versions CEF-TCU equipped with Temperature Control Unit
  • Which protects against high temperature in enclosed compartments
  • Indoor/outdoor (CEF-U) application
  • Equipped with medium type striker, which is activated immediately when the fuse-elements melt


ABB CEF Indoor Current Limiting Fuse Ratings

Rated fuse voltage 3.6kV, 7.2kV up to 36kV

Rated fuse current 6A - 200A

ABB CEF Medium Voltage Fuses - Indoor Current Limiting

ABB CEF Current Limiting Fuses Specifications
Volt-age Dimensions e/D (mm) & Rated Current (A)
e=192 e=292 e=367 e=442 e=537
D=65 D=87 D=53 D=65 D=87 D=65 D=87 D=53 D=65 D=87 D=65 D=87

3.6 kV

7.2 kV



6A

10A

16A

25A

40A

50A

63A

80A

100A



6A

10A

16A

25A

40A

50A

63A

80A

100A

125A

160A

200A



125A

160A

200A


12 kV

6A

10A

16A

20A



6A

10A

16A

25A

31A

40A

50A

63A

80A

100A

80A

100A

125A



6A

10A

16A

20A

6A

10A

16A

25A

31A

40A

50A

63A

80A

100A

125A

80A

100A

125A

160A

200A

125A

125A

160A

200A

17.5 kV

6A

10A

16A

20A

25A

31A

40A

50A

40A

50A

63A

6A

10A

16A

20A

25A

31A

40A

50A

40A

50A

63A

100A



6A

10A

16A

20A

25A

31A

40A

50A

40A

50A

63A

80A

100A

125A



80A

100A

125A

24 kV

6A

10A

16A

20A

6A

10A

16A

20A

25A

31.5A

40A

50A

63A

50A

63A

80A

100A

125A​

80A

80A

100A

125A

27 kV

6A

10A

16A

25A

40A

50A

63A



80A

100A

36 kV

6A

10A

16A

25A

40A
