ABB BPS Indoor Fuse Bases - IEC Standard 7.2kV-36kV



ABB BPS fuse bases are suitable for all types of high power fuse links type DIN (fitted with a Ø45mm end contact).

The fuse-bases type ABB BPS are intended for medium-voltage fuse links with or without striker. The ABB fuse base can be applied in cases where fuse links are used to protect MV-HV transformer circuits as well as motor circuits. By using these bases, the signaling circuits in the switching station can see that a particular fuse has blown. The fuse-bases are designed for indoor applications where temperate climate conditions exist. ABB BPS fise bases can be mounted vertically or horizontally, and this enables easy replacement of the medium voltage fuse link.

ABB BPS Fuse Base - Indoor Medium Voltage

ABB BPS Indoor Fuse Base Features

  • Suitable for all types of high power fuse links fitted with Ø45mm contact
  • May co-operate with switching station auxiliary and control circuits
  • Small overall dimensions



ABB BPS Indoor Fuse Base Specifications

  • Rated fuses voltage 7.2kV - 36kV
  • Rated fuses current up to 315A
  • Frequency 50Hz or 60Hz
  • International Standard IEC 60 282-1
  • Polish Standard PN-77/E-06110



There are two types of ABB BPS fuse bases:

1. ABB Three Pole Fuse Base - this fuse bases is composed of two separated steel bars fitted with M10 ear thing terminals, and three fixed indoor resin post-insulators.

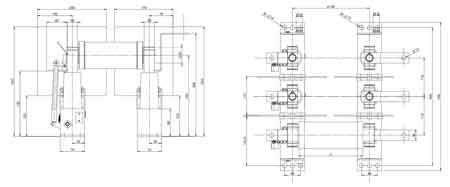

Three phases fuse base type BPS-01

2. ABB Single Pole Fuse Base - this fuse base is manufactured in two basic version i.e. as one and two-piece devices. Two-piece bases con- sist of two steel bars fitted with M10 ear thing terminals. Indoor resin post-insulators are fixed to these bars.

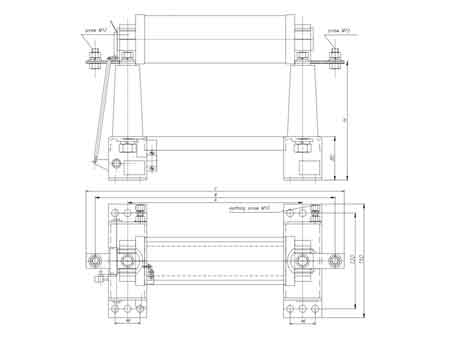

 Single Pole One-Piece Fuse Base

ABB BPS Indoor Fuse Base Characteristics
Fuse Base Type Fuse Base Voltage

Rated

Frequency

Rated Current

Types of Suitable Fuse Links
Un f In

ABB

BPS-01

Three pole 7.2kV 50Hz / 60Hz 315A

CEF-7,2/ 6÷200

CMF-7,2/63÷315

ABB

BPS7.2

Single pole 7.2kV 50Hz / 60Hz 315A

CEF-7,2/6-200

CMF-7,2/63-315

ABB

BPS12

Single pole 12kV 50Hz / 60Hz 200A

CEF-12/6-200

CMF-12/63-200

CEF-S-12/10-50

CEF-VT-7,2-12/2-6,3

ABB

BPS17.5

Single pole 17.5kV 50Hz / 60Hz 125A

CEF-17,5/6-63

CEF-VT-10-17,5/2-6,3

ABB

BPS24

Single pole 24kV 50Hz / 60Hz 125A

CEF-24/6-125

CEF-S-24/10-40

CEF-VT-17,5-24/2-6,3

ABB

BPS27

Single pole 27kV​ 50Hz / 60Hz 100A

CEF-27/6-63

ABB

BPS36

Single pole 36kV​ 50Hz / 60Hz 40A

CEF-36/6-40
