3M Scotchcast Branch LV Low Voltage Cable Joints - Hazardous Area (Zones 1 & 2)

3M Scotchcast Branch LV Low Voltage Cable Joints

Hazardous Area (Zones 1 & 2)



3M Scotchcast Branch LV Low Voltage Y Cable Joints

Suitable for Zone 1 and Zone 2 Hazardous Areas

Scotchcast Resin Branch Joint Kits 92-NBB with Resin 1402FR

Y-Branch Joint Kit Series with 3M Scotchcast Resin 1402FR

Branch Cable Joint Kit Application - Y Type Branch Joint

3M Scotchcast resin Y branch cable joint kits 92-NBB are designed to be used for unarmoured, multi-core, polymeric low voltage power cables.

The branch jointing application incorporates electrical insulation and mechanical protection of cable joints with compression or mechanical connectors.

3M low voltage branch cable joints can be used for indoor and outdoor, underground and submerged cable jointing applications located in hazardous areas Zone 1 and Zone 2.

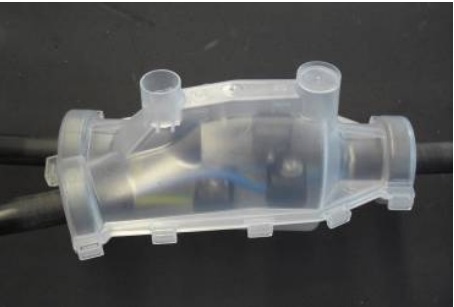

Pictured : 3M Scotchcast Branch LV Low Voltage Cable Joints -  Hazardous Area (Zones 1 & 2)

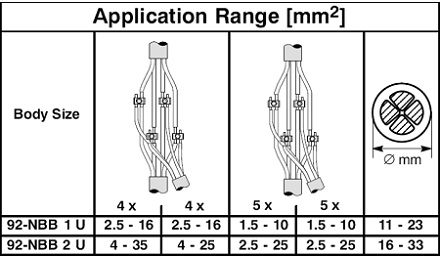

Pictured: 3M Scotchcast Branch LV Low Voltage Cable Joints (Application Range)

3M Scotchcast Low Voltage LV Resin Branch Cable Joints Kits

• One part cable joint mould construction - quick simple installation
• Top seal and fixing clips - reduced chance of resin leakage from joint shell
• Range taking foam seals - no taping or sawing
• Fully integrated resin joint delivery - safer, cleaner installation of cable joints
• Complete with 3M Scotchcast premium 2 part cable joint resin
• Branch cable joints rated up to and including 1.9/3.3kV

3M Hazardous Area Cable Joints

3M Scotchcast Branch LV Low Voltage Cable Joints - Hazardous Area (Zones 1 & 2)
