3M Scotchcast Branch LV Low Voltage Cable Joints - High Humidity & Cathodic Protection

3M Scotchcast Branch LV Low Voltage Cable Joints

3M 92NBC-2 T-Branch Joint Kit

High Humidity & Cathodic Protection

3M 92NBC-2 T-Branch Joint Kit with Scotchcast Resin 40G for High Humidity Areas and Cathodic Protection - suitable for indoor, outdoor, underground and submerged cable jointing applications.

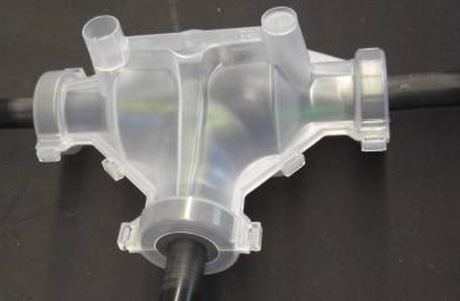

Pictured : 3M Scotchcast Branch LV Low Voltage Cable Joints - High Humidity & Cathodic Protection

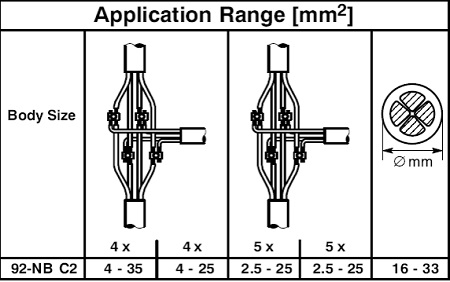

Pictured : 3M 92NBC-2 T-Branch Joint Kit (Application Range)

3M Scotchcast Low Voltage LV Resin Branch Cable Joints Kits

• One part cable joint mould construction - quick simple installation
• Top seal and fixing clips - reduced chance of resin leakage from joint shell
• Range taking foam seals - no taping or sawing
• Fully integrated resin joint delivery - safer, cleaner installation of cable joints
• Complete with 3M Scotchcast premium 2 part cable joint resin
• Branch cable joints rated up to and including 1.9/3.3kV

3M Scotchcast Branch LV Low Voltage Cable Joints - High Humidity & Cathodic Protection

3M Scotchcast LV Cable Joints Selection Guide
