Hazardous Area Cable Jointing Kit (Zone 1 & 2) - up to 4 Core 35sqmm - 3M Scotchcast Kit LVI3/4

3M Cable Joint KitHazardous Area Power Cable Joints

ATEX





3M LVI-3/4 Scotchcast Power Cable Joint Kit

Suits 28-47mm Cable OD

  • Single 1 Core 1kV 600/1000 volts up to 185sqmm
  • Two 2 Core 1kV 600/1000 volts up to 70sqmm
  • Three 3 Core 1kV 600/1000 volts up to 50sqmm
  • Four 4 Core 1kV 600/1000 volts up to 35sqmm
  • Single 1 Core 3.3kV 3,300 volts up to 185sqmm
  • Three 3 Core 3.3kV 3,300 volts up to 35sqmm

3M's Scotchcast LVI-3/4 hazardous area (Zone 1 & 2) power cable jointing kit is suitable for XLPE, EPR and PILC cables with steel wire armour (SWA) or galvanised steel wire braid (GSWB), 0.6/1kV and up to 3.3kV.

3M's LVI-3/4 cable joint kit is suitable for indoor, outdoor, underground direct burial and submerged installations - hydrocarbon resistant, chemical resistant, halogen free and flame retardant low voltage joint kits.

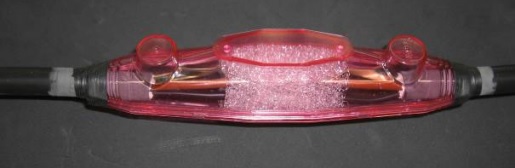

Pictured: 3M LVI-3/4 Scotchcast Power Cable Joint Kit

Hazardous Area Cable Jointing Kit (Zone 1 & 2) - up to 4 Core 35sqmm - 3M Scotchcast Kit LVI3/4

Hazardous Area Cable Jointing Kit (Zone 1 & 2) - up to 4 Core 35sqmm

3M Scotchcast Kit LVI-3/4

3M Kit Reference PVC/PILC Dimn. 'A' (mm) Armour Dimn. 'B' (mm) Lead Dimn. 'C' (mm) Cable O.D. (mm)
LVI-3/4 110 25 25 28-47



Video: Hazardous Area Cable Joints - 3M Scotchcast Resin LVI3 Cable Joint

Adobe Hazardous Area Cable Jointing Kit (Zone 1 & 2) - up to 4 Core 35sqmm - 3M Scotchcast LVI3/4
