Prysmian Draka Cables

Bostrig 125 Type P Control 10AWG & 12AWG

Armoured Cables

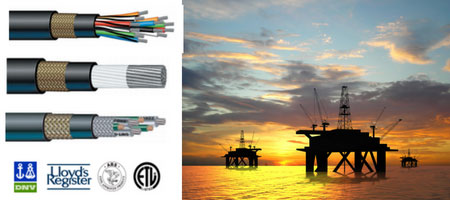

Prysmian Draka Offshore Drilling Cables



Prysmian Draka Cables - Bostrig 125 Type P Control 10AWG & 12AWG Armoured Cables Applications

Prysmian Draka Cables - Bostrig 125 Type P Control 10AWG & 12AWG Armoured Cables ApplicationsPrysmian Draka Bostrig Type P Marine and Offshore Cable is primarily designed for power, control, signal and instrumentation applications for offshore, land rigs, marine vessels and oil and gas drilling rigs. Bostrig 125 Type P Control cables have excellent resistance to oil, abrasion, moisture, sunlight and ester-based mud (Type P-MR). Bostrig 125 Type P Control are suitable for use in Class I, Division I and Zone I applications (armoured and sheathed) and meet the crush and impact resistance requirements (C&IR) of UL 2225. The standard cable insulation has a continuous operating temperature of 125ºC allowing for higher ampacity levels. Larger diameter cables carry a new flexible design. They satisfy Transport Canada’s cold bend at -40ºC and cold impact at -35ºC (CSA C 22.2 No. 0.3). Bostrig 125 Type P Control cable is readily available in an unarmoured version.



Prysmian Draka Cables - Bostrig 125 Type P Control 10AWG & 12AWG Armoured Cables Approvals

  • ETL/Intertek Testing Services Listed as Marine Shipboard Cable in accordance with IEEE 45 (1998), IEEE 1580 (2001), UL 1309/CSA245 and the performance requirements of IEC 60092-3
  • Det Norske Veritas Type Approval Certificates E8792, E8793, E8794, E8795 and E8796
  • American Bureau of Shipping Approval Certificate 03-HS347018C/3-PDA
  • Lloyds Registry of Shipping Approval Certificates
  • No. 95/00161(E3) and 95-00162(E3)
  • Transport Canada Approved AMS400-20-2

T&D distribute Prysmian Draka marine and offshore cables with Lloyds Register, DNV GL and NEK 606 standards.

Prysmian

Prysmian Draka Cables - Bostrig 125 Type P Control 10AWG & 12AWG Armoured Cables Construction

1. Conductors Soft annealed stranded tinned copper per ASTM B 33. A polyester tape separator is used over the conductor.

2. Insulation Bostrig Type P chemically cross-inked polyolefin (XLPO), meeting IEEE 1580 (2001).

3. Jacket Flame-retardant Arctic Neoprene, complying with Type N Neoprene as required in IEEE-1580 (2001). Thickness as shown on data sheet for unarmored version.

4. Armor Braided bronze in accordance with IEEE 1580 (2001).

5. Sheath Flame-retardant Arctic Neoprene applied over the armor, complying with Type N Neoprene as required in IEEE 1580 (2001).

6. Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact

7. Meets IEEE standards for 600V / IEC standards for 0.6/1kV
