Wolf Wolflite XT Rechargeable LED Handlamp ATEX

Wolf Wolflite XT Rechargeable LED Handlamp ATEX

Wolf Handlamps Hazardous Area ATEX Zone 1 & 2

Wolf Wolflite XT ATEX





Wolflite XT LED are ATEX certified handlamps for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres.

Wolf XT LED handlamps are fitted with bespoke optics and provide the highest performance ‘fitted for life’ LED light sources delivering a high intensity spot beam (Standard model) which is switchable to a wide-angle flood (Performance model) and additional coloured signal LEDs (Performance+ model).

Wolf Wolflite XT Rechargeable LED Handlamp ATEX is one of the latest versions of the highly successful, industry standard range of Wolflite Ex handlamps from The Wolf Safety Lamp Company for hazardous area portable lighting applications.

Wolf Wolflite XT LED Handlamp ATEX (Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas)

Wolf Wolflite XT Rechargeable LED Handlamp ATEX Features & Benefits

  • ATEX and IECEx certified for use in Zones 1 and 21, plus Zone 0 version available
  • Ultra bright high power LED light 350+ lumens
  • Spot and flood switchable beam options
  • Up to 11 hours duration on full power, 22 hours in powersave mode
  • IP67 dust and watertight

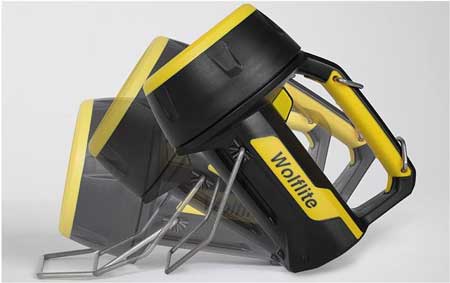

  • Integral stand for hands free beam direction
  • Quick charge, from 2 hours
  • Emergency illumination power fail mode
  • Supplied with shoulder carrying strap
  • Suitable for cyclic and short and long term standby applications

Wolf Wolflite XT Rechargeable LED Handlamp ATEX

Wolf Wolflite XT Rechargeable LED Handlamp ATEX


ATEX Certfied Handlamp

Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 1 & Zone 2 Gas
  • Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations

The Wolflite XT range are handlamps manufactured by Wolf Safety Lamp to provide lighting in Zone 1, Zone 0, Zone 21 or Zone 20 hazardous areas – the rechargeable LED handlamp is for use in potentially explosive atmospheres according to the ATEX Directive.

Wolf Wolflite XT Rechargeable LED Handlamp ATEX - Specification

Wolf  Product Ref XT-50 XT-70 XT-90 XT-75
Product Description Rechargeable Safety Handlamp
Standard Performance Performance+ Performance
Code (ATEX & IECEx)

Industrial: II 2GD Ex ib IIC T4 Gb IP67 Ex ib IIIB T185°C Db (Temperature ambient -30°C to +40°C)

Mining: I M2 Ex ib I Mb IP67

Industrial: II 1G Ex ia IIC T4 Ga

Mining: I M1 Ex ia I Ma IP67

Type of Protection “ib” intrinsic safety  "ia" intrinsic safety
Area of Classification (Gas) Zones 1 and 2 Gas Groups IIA, IIB & IIC  Zones 0,1 and 2 Gas groups IIA, IIB & IIC
Temp. Classification (Gas)  T4
Area of Classification (Dust)  Zones 21 and 22 Dust Groups IIIA and IIIB  N/A
Max. Surface Temperature (Dust) 185°C  N/A
Ambient Temperature -30°C to +40°C -20°C to +40°C
Certificate

ATEX Baseefa09

ATEX0326X / IECEx BAS 09.0153X

ATEX Baseefa09

ATEX0326 / IECEx BAS 09.0153

Enclosure  Impact resistant thermoplastic, electrostatic non-hazardous
Lens  Toughened glass
Beam Type  Spot  Spot / Flood  Spot / Flood / Signal  Spot/Flood
Light Source
Type  High Power LED
Quantity  1 x White  2 x White 2 x White, 2 x Coloured  2 x White
Output 350+ lm (White)
Life 25,000+ hrs
Power Source
Type Rechargeable battery, Lithium-Ion
Part No. XT-202 XT-204 XT-206 XT-204
Life Up to 500 recharge cycles
Light Duration Up to 4.0 / 8.0hrs  Up to 7.5 / 15.0hrs Up to 11.0 / 22.0hrs  Up to 7.5 / 15.0hrs
Ingress Protection IP67 to EN60529: 1992
Weight 1.2Kg
Compatible Charger XT-200L 12-24Vdc / XT-200H 90V-254Vac
Recharge Time 2.0 hrs  3.5 hrs 4.5 hrs 3.5 hrs

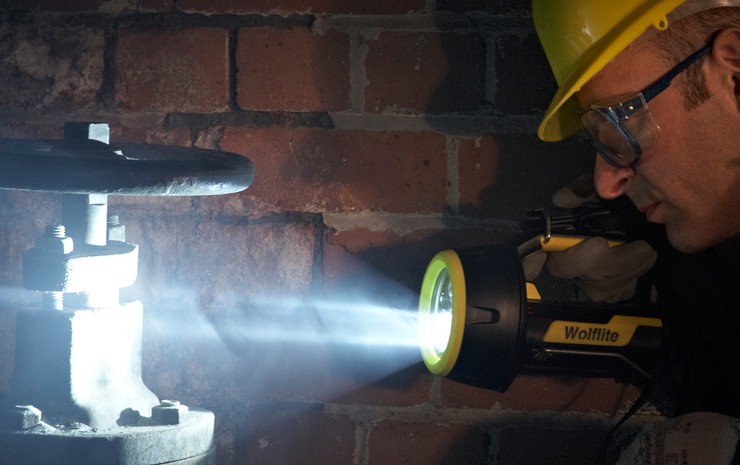

Wolf Wolflite XT LED Handlamp – ATEX Certified

Wolf Wolflite XT LED Handlamp  ATEX Certified.

Wolf Wolflite XT ATEX

Wolf Wolflite XT ATEX

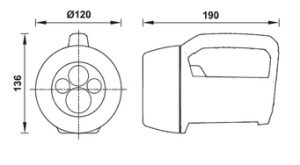

Wolflite XT LED Handlamp ATEX – Product Dimensions

Wolflite XT LED Handlamp ATEX  Product Dimensions

Video: Wolf Wolflite XT Rechargeable LED Handlamp ATEX

Adobe

Wolf Wolflite XT Rechargeable LED Handlamp ATEX - Instructions

Adobe

Wolf Wolflite XT Rechargeable LED Handlamp ATEX - Spec Sheet
