Wolf Wolflite XT-50 Rechargeable LED Handlamp Hazardous Area Zone 1 & Zone 2

Wolf Wolflite XT-50 Rechargeable LED Handlamp Hazardous Area Zone 1 & Zone 2

Wolf Wolflite XT Rechargeable LED Handlamp ATEX

Wolf Wolflite XT-50 ATEX





Wolf XT-50 hazardous area handlamps are ATEX & IECEx certified for use in Zones 1 and 21, plus Zones 0 and 20 version available.

Wolf XT-50 Hazardous Area Handlamps

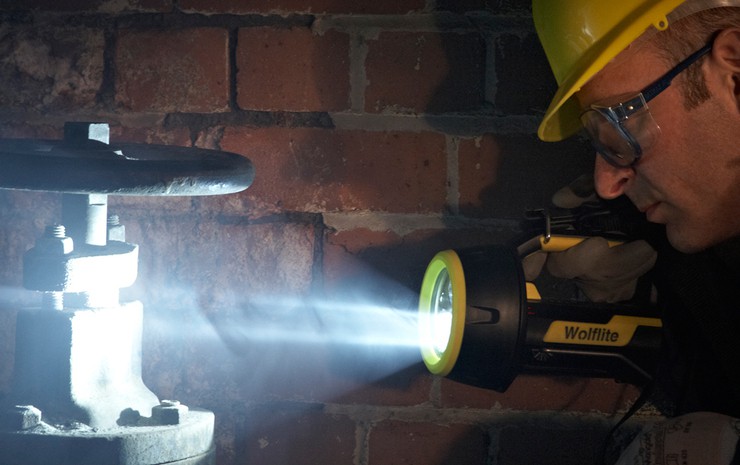

Wolf Wolflite XT-50 is a rechargeable LED handlamp with “ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the Wolflite XT-50 provides an output of 350+ lm (White).

  • Zone 1 & Zone 2 Hazardous Area – Gas Groups IIA, IIB & IIC
  • Zone 21 & Zone 22 Hazardous Area – Dust Groups IIIA and IIIB
  • Temperature Classification (Gas) – T4
  • Handlamp Beam Type – Spot (High Power LED – 1 x White)
  • Compact & Lightweight – 1.2Kg

Wolf Wolflite XT-50 Rechargeable LED Handlamp Hazardous Area Zone 1 & Zone 2 Features & Benefits

  • ATEX and IECEx certified for use in Zones 1 and 21, plus Zone 0 version availableATEX
  • Ultra bright high power LED light 350+ lumens
  • Spot and flood switchable beam options
  • Up to 11 hours duration on full power, 22 hours in powersave mode
  • IP67 dust and watertight

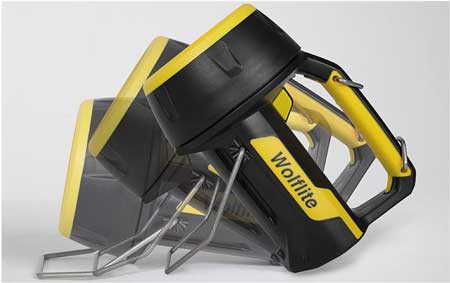

  • Integral stand for hands free beam direction
  • Quick charge, from 2 hours
  • Emergency illumination power fail mode
  • Supplied with shoulder carrying strap
  • Suitable for cyclic and short and long term standby applications

Wolf Wolflite XT-50 Rechargeable LED Handlamp Hazardous Area Zone 1 & Zone 2

Wolf Wolflite XT-50 Rechargeable LED Handlamp Hazardous Area Zone 1 & Zone 2


Wolf Wolflite XT-50 Rechargeable LED Handlamp Hazardous Area Zone 1 & Zone 2 - Specification
Wolf Product Ref XT-50
Product Description Rechargeable Safety Handlamp
Standard
Code (ATEX & IECEx)

Industrial: II 2GD Ex ib IIC T4 Gb IP67 Ex ib IIIB T185°C Db (Temperature ambient -30°C to +40°C)

Mining: I M2 Ex ib I Mb IP67
Type of Protection “ib” intrinsic safety
Area of Classification (Gas) Zones 1 and 2 Gas Groups IIA, IIB & IIC
Temp. Classification (Gas)  T4
Area of Classification (Dust)  Zones 21 and 22 Dust Groups IIIA and IIIB
Max. Surface Temperature (Dust) 185°C
Ambient Temperature -30°C to +40°C
Certificate

ATEX Baseefa09

ATEX0326X / IECEx BAS 09.0153X
Enclosure  Impact resistant thermoplastic, electrostatic non-hazardous
Lens  Toughened glass
Beam Type  Spot
Light Source
Type  High Power LED
Quantity  1 x White
Output 350+ lm (White)
Life 25,000+ hrs
Power Source
Type Rechargeable battery, Lithium-Ion
Part No. XT-202
Life Up to 500 recharge cycles
Light Duration Up to 4.0 / 8.0hrs
Ingress Protection IP67 to EN60529: 1992
Weight 1.2Kg
Compatible Charger XT-200L 12-24Vdc / XT-200H 90V-254Vac
Recharge Time 2.0 hrs
