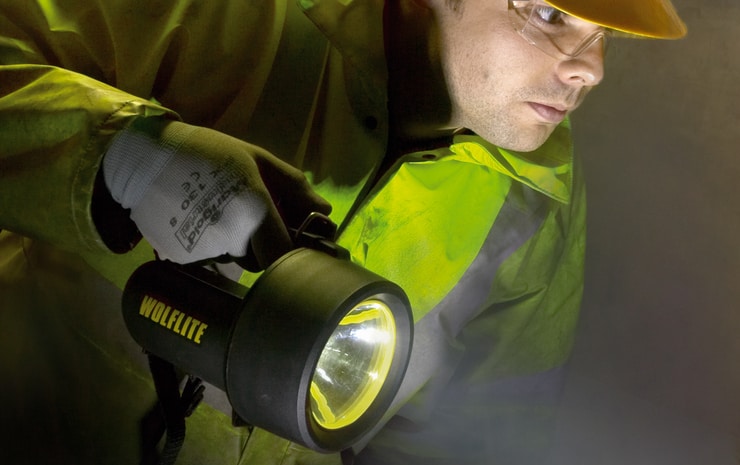

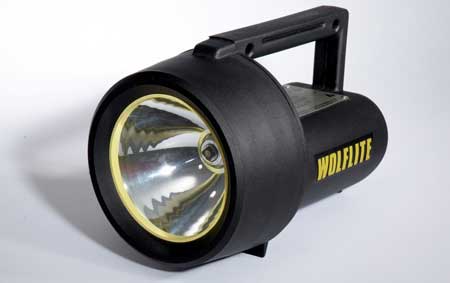

Wolf Wolflite H-251A Rechargeable Handlamp ATEX
Wolf Wolflite H-251A ATEX
Wolflite H-251A are ATEX certified handlamps for safe use in hazardous area Zones 1, 2, 21 & 22 and potentially explosive atmospheres.
The Wolf H-251A Handlamp is robust and reliable, especially designed for use within in harsh environments.
The H-251A is fitted with a scratch & impact resistant lens, constructed from 6mm toughened glass and the body and lens ring are moulded in a highly resilient thermoplastic material to withstand drop and impact expected from heavy industrial use, even at sub-zero temperatures.
Wolf Wolflite H-251A Rechargeable Handlamp Hazardous Area Zone 1 & Zone 2 Features & Benefits

Dust ignition protected for zones 21 and 22, for dusts with ignition temperatures over 135°CWolf Wolflite H-251A Rechargeable Handlamp Hazardous Area Zone 1 & Zone 2

| Wolf Handlamp | Wolflite Handlamp H-251A | ||
| Product description | Rechargeable LED safety handlamp | ||
| Code | ATEX | II 2 GD EEx e ib IIC T4 IP66 T135?C | |
| IECEx | Ex e ib I/IIC T4 IP65 | ||
| Type of protection | "e" increased safety, "ib" intrinsic safety | ||
| Area of classification (Gases) | Hazardous Area Zones 1 and Zones 2 Gas Groups IIA, IIB, IIC |
||
| Temp. classification (Gases) | T4 | ||
| Area of classification (Dust) | Zones 21 and Zones 22 | ||
| Max. surface temperature (Dust) | 135°C | ||
| Ambient temperature | -20°C to +40°C | ||
| Certificate | BAS00ATEX2176, IECEx TSA 05.0017X | ||
| Handlamp Enclosure | Thermoplastic, anti-static | ||
| Handlamp Lens | Toughened glass (6mm) | ||
| Beam type | Spot | ||
| Light source: | Pt. no. | Wolf H-69 | |
| Type | Halogen filled filament bulb | ||
| Volts | 3.75v | ||
| Watts | 2.8w | ||
| Output | 39 lm (at 3.75v) | ||
| Life | 100 hrs | ||
| Power source: | Pt. no. | Wolf H-66 | |
| Type | Rechargeable battery, sealed lead acid | ||
| Volts | 4v | ||
| Capacity | 5Ah | ||
| Life | up to 500 recharge cycles | ||
| Light duration | Up to 7 hours | ||
| Ingress protection | IP66 to EN60529/IP65 to IEC60529 | ||
| Weight (incl. battery) | 1.75kg | ||
| Compatible charger | C-251 HV or C-251 LV | ||
Wolf Wolflite H-251A Rechargeable Handlamp

![]() | Wolf Wolflite H-251A Rechargeable Handlamp Hazardous Area Zone 1 & Zone 2 Instructions |
![]() | Wolf Wolflite H-251A Rechargeable Handlamp Hazardous Area Zone 1 & Zone 2 Spec Sheet |
