Wolf Handlamps Hazardous Area ATEX Zone 1 & 2

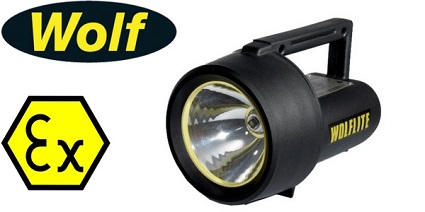

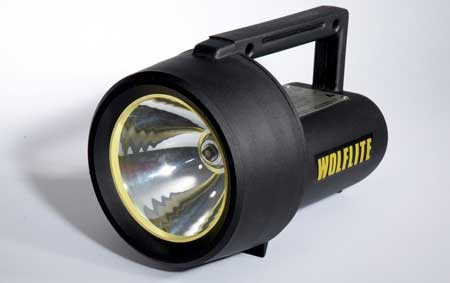

Wolf Wolflite H-251ALED ATEX
Wolf Wolflite H-251ALED Handlamp ATEX is one of the latest versions of the highly successful, industry standard range of Wolflite Ex handlamps from The Wolf Safety Lamp Company for hazardous area portable lighting applications for safe use in hazardous area Zones 1, 2, 21 & 22 and potentially explosive atmospheres.
Wolflite H-251ALED handlamp provides reliable and versatile hazardous area lighting according to both ATEX Directive and IECEx standards – the handlamps utilise LED technology as a light source and are used for safe lighting in hazardous area Zones 1 and Zones 2 (potentially explosive gas) and Zones 21 and Zones 22 dust atmospheres (IIA, IIB & IIC Groups) with T4 temperature classification.
T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.
Wolf Wolflite H-251ALED Handlamp ATEX Features & Benefits
Wolf Wolflite H-251ALED Rechargeable Handlamp ATEX
Wolf Handlamp | Wolflite Handlamp H-251A | Wolflite Handlamp H-251A LED | |
Product description | Rechargeable LED safety handlamp | ||
Code | ATEX | II 2 GD EEx e ib IIC T4 IP66 T135?C | |
IECEx | Ex e ib I/IIC T4 IP65 | ||
Type of protection | "e" increased safety, "ib" intrinsic safety | ||
Area of classification (Gases) | Hazardous Area Zones 1 and Zones 2 Gas Groups IIA, IIB, IIC |
||
Temp. classification (Gases) | T4 | ||
Area of classification (Dust) | Zones 21 and Zones 22 | ||
Max. surface temperature (Dust) | 135°C | ||
Ambient temperature | -20°C to +40°C | ||
Certificate | BAS00ATEX2176, IECEx TSA 05.0017X | ||
Handlamp Enclosure | Thermoplastic, anti-static | ||
Handlamp Lens | Toughened glass (6mm) | ||
Beam type | Spot | ||
Light source: | Pt. no. | Wolf H-69 | Wolf H-79 |
Type | Halogen filled filament bulb | High Power LED | |
Volts | 3.75v | 3.75v | |
Watts | 2.8w | 1w | |
Output | 39 lm (at 3.75v) | 60 lm (Peak) | |
Life | 100 hrs | 25,000 hrs | |
Power source: | Pt. no. | Wolf H-66 | |
Type | Rechargeable battery, sealed lead acid | ||
Volts | 4v | ||
Capacity | 5Ah | ||
Life | up to 500 recharge cycles | ||
Light duration | Up to 7 hours | Up to 24 hours | |
Ingress protection | IP66 to EN60529/IP65 to IEC60529 | ||
Weight (incl. battery) | 1.75kg | ||
Compatible charger | C-251 HV or C-251 LV |

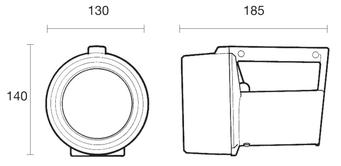

Wolf Wolflite H-251ALED Rechargeable Handlamp ATEX – Product Dimensions
Wolf Wolflite H-251ALED ATEX
![]() | Wolf Wolflite H-251ALED Rechargeable Handlamp ATEX - Instructions |
![]() | Wolf Wolflite H-251A\LED Rechargeable Handlamp ATEX - Spec Sheet |
