Wolf Airlamps - Hazardous Area ATEX Zone 1 & Zone 2

Wolf Turbolites - A-TL Range

Hazardous Area Zone 1 & Zone 2

Airlamps





Wolf Turbolite are airlamps for safe use in hazardous area Zones 1 & 2 and potentially explosive Wolfatmosphere - offering suitable lighting alternative solution to low voltage lighting in wet conditions

The Wolf Turbolites provide illumination for applications such as tank cleaning and pipeline inspections, commonly within the oil and petrochemical industries and are a safer alternative to mains and low voltage lighting in potentially explosive atmospheres.

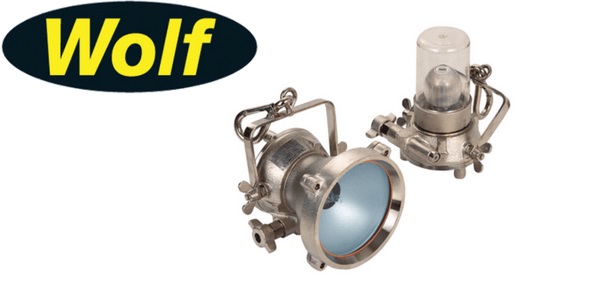

Wolf Airlamp Turbolite  Zone 1 & Zone 2 Hazardous Area

Turbolites are available with either a bay light fitting which uses a ball glass and a protective polycarbonate dome to provide 360º illumination or with a reflector head fitting for direct illumination with either a polished or matt reflector for a concentrated narrow beam or a diffused wide angle beam.

Wolf's Turbolite's use a 24V 250W tungsten halogen bulb either providing 6,000 lumens for 2,000 hours or 9,000 lumens for 200 hours.

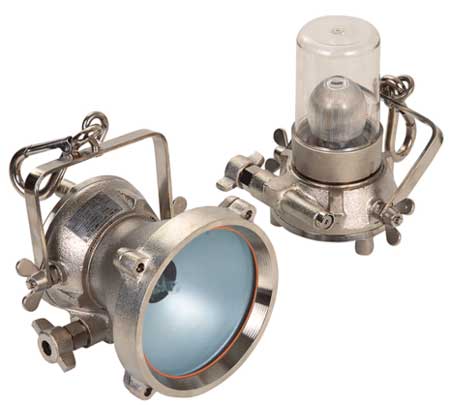

Pictured: Wolf Turbolites

Wolf Turbolites

Wolf Turbolites - Features & Benefits

  • 250 Watt Halogen Ultimate Output
  • Electronic Setting DeviceWolf Safety
  • Generator Overspeed Protector
  • Advanced Internal Topology Rotor Design
  • Spark Free Brass Casings
  • Full Accessory Range Available

Airlamp

Zones 1 & 2 Hazardous Areas

  • Zone 1 & Zone 2 Gas
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf Turbolites - Product Range
Wolf Product Reference A-TL44 A-TL45
Product Description Safety Bay Light, Compressed Air Powered Safety Flood Light, Compressed Air Powered
Code Ex s II T4
Apparatus Standards SFA 3009:1972
Type of Protection "s" Special Protection
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas) T4
Ambient Temperature -20ºC to +40ºC
Certificate BASEEFA Ex 78209X*
Enclosure Nickel Plated Brass and Gun Metal
Lens Ball Glass / Polycarbonate Dome Toughened Glass (15mm)
Beam Type All-around 360º Illumination Flood (Matt Reflector as standard) or Spot (Polished Reflector to order)
Light Source Part Number A-129 (as standard) / A-159 (alternative)
Type Halogen Filled Filament Bulb
Volts 24V
Watts 250W
Output 6000 lm / 9000 lm
Life 2,000 hours / 200 hours
Power Source Type Compressed Air Driven Turbo-alternator
Air Pressure 4.0-8.0 bar
Consumption 0.75m³/min
Ingress Protection Once pressurised may be used underwater
Weight 7.9kg 12.2kg
*Special Certification Conditions A clean dry air supply must be used. Supply hose must be anti-static

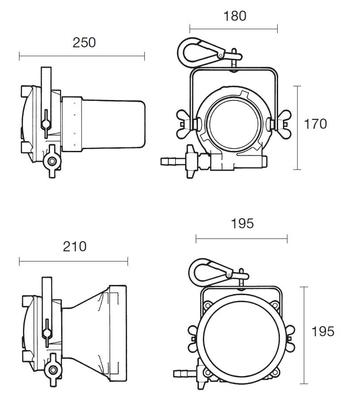

Wolf Airlamp Turbolite – Product Dimensions

Wolf Airlamp Turbolite  Product Dimensions
