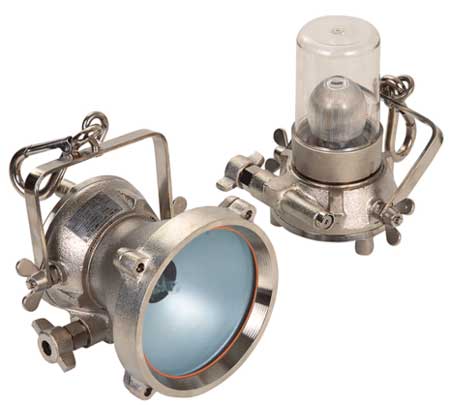

Wolf A-TL44 Turbolites Hazardous Area Zone 1 & Zone 2

Wolf A-TL44 Turbolites Hazardous Area Zone 1 & Zone 2

Wolf Turbolites

Wolf A-TL44

Hazardous Area Zone 1 & Zone 2

Airlamps





Manufacturer: Wolf

Part Code: A-TL44

  • Description: Safety Bay Light, Compressed Air Powered
  • Hazardous Area Code: Ex s II T4
  • Type Of Protection: “s” special protection
  • Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
  • Temperature Classification (Gas): T4
  • Ambient Temperature: -20°C to +40°C
  • Certificate: BASEEFA Ex 78209X*
  • Enclosure: Nickel Plated Brass and Gun Metal
  • Lens: Ball Glass/Polycarbonate Dome
  • Beam Type: All-around 360° Illumination

Wolf A-TL44 Turbolites Hazardous Area Zone 1 & Zone 2

Wolf A-TL44 Turbolites Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • 250 Watt Halogen Ultimate Output
  • Electronic Setting DeviceWolf Safety
  • Generator Overspeed Protector
  • Advanced Internal Topology Rotor Design
  • Spark Free Brass Casings
  • Full Accessory Range Available
Wolf A-TL44 Turbolites Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference A-TL44
Product Description Safety Bay Light, Compressed Air Powered
Code Ex s II T4
Apparatus Standards SFA 3009:1972
Type of Protection "s" Special Protection
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas) T4
Ambient Temperature -20ºC to +40ºC
Certificate BASEEFA Ex 78209X*
Enclosure Nickel Plated Brass and Gun Metal
Lens Ball Glass / Polycarbonate Dome
Beam Type All-around 360º Illumination
Light Source Part Number A-129 (as standard) / A-159 (alternative)
Type Halogen Filled Filament Bulb
Volts 24V
Watts 250W
Output 6000 lm / 9000 lm
Life 2,000 hours / 200 hours
Power Source Type Compressed Air Driven Turbo-alternator
Air Pressure 4.0-8.0 bar
Consumption 0.75m³/min
Ingress Protection Once pressurised may be used underwater
Weight 7.9kg
*Special Certification Conditions A clean dry air supply must be used. Supply hose must be anti-static
