Wolf TS-30+ ATEX Safety Torch With LED Hazardous Area Zone 1 & Zone 2

Wolf TS-30+ ATEX Safety Torch With LED Hazardous Area Zone 1 & Zone 2

Wolf ATEX Safety Torches With LED

Wolf TS-30+

ATEX Zone 1 & Zone 2

Wolf TS-30B+ is an ATEX torch with “ib” intrinsic safety type of protection for hazardous areas – using high power LED as the light source the TS-30B+ provides an output of 130lm.

  • Description: Primary cell LED straight safety torch
  • Hazardous Area Code: I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db
  • Type Of Protection: ‘ib’ Intrinsic Safety
  • Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
  • Temperature Classification (Gas): T4
  • Hazardous Area Classification (Dust): Zone 21 and 22
  • Max Surface Temperature (Dust): T130°C
  • Ambient Temperature: -20°C to +40/55°C
  • Certificate: ATEX Baseefa07ATEX0091X / IECEx BAS 06.0089X
  • Enclosure: Impact resistant thermoplastic, chemical resistant, static dissipative
  • Lens: Toughened Glass 4mm
  • Beam Type: Medium spot with wide angle-flood of fringe light

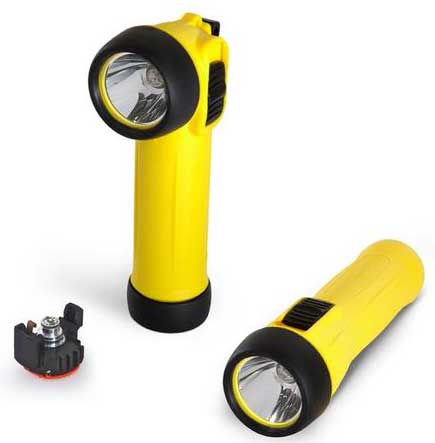

Pictured: Wolf TS-30+ ATEX Safety Torch With LED for Hazardous Areas Zone 1 & Zone 2

Wolf TS-30+ ATEX Safety Torch With LED for Hazardous Areas Zone 1 & Zone 2

Wolf TS-30+ ATEX Safety Torch With LED for Hazardous Areas Zone 1 & Zone 2 - Features & Benefits

  • ATEX certified for explosive gas and dust approval
  • High output LED light sourceWolf Safety
  • Duration up to 27 hours from 2 x 1.5V D Cells LR20
  • T4 temperature class
  • IP67 dust and watertight
  • Low battery indicatorATEX
  • Simple, robust design
  • Straight and right-angle versions
  • Single handed switching
  • LED module can be retro-fitted to Wolf T4 bulb torches
  • All models are supplied with wrist straps



Wolf TS-30+ ATEX Safety Torch With LED for Hazardous Areas Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference TS-30+
Product Description ATEX Safety Torch with LED, Primary Cell Powered
Straight T4 LED with Indicator
Code (ATEX & IECEx) II 2 GD Ex e ib IIC T4 Gb (Ta=55ºC*) *IECEx 40ºC, Ex tb IIIC T95ºC Db (Ta=55ºC)
Type of Protection Increased Safety, Intrinsic Safety
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T4
Ambient Temperature (Gas) -20ºC to +55ºC*, *IECEx +40ºC
Area of Classification (Dust) Zones 21 and 22
Temperature Class (Dust) 95ºC
Ambient Temperature (Dust) -20ºC to +55ºC
Certificate ATEX: BAS 02 ATEX 2220X. IECEx: TSA 05.0017X
Enclosure Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
Lens Polycarbonate, Impact Resistant with Hard Coat
Beam Type Medium Spot
Light Source Part No TP-300
Power Torch LED Module
Output 70 lm
Life 25,000 hours+ (Fitted for life)
Spare TP-406
Power Source Part Number 2 x H-20 (LR20)
Battery Type LR20 Primary Cells, to IEC 60086
Volts 2 x 1.5V
Low Battery Indicator Yes
Light Duration Up to 22 hours to low power indicator up to 27 hours total
Ingress Protection IP67
Weight (Incl Cells) 0.475kg





Adobe

Wolf TS-30+ ATEX Safety Torch With LED - Spec Sheet
