Wolf Torches Hazardous Area ATEX Zone 1 & Zone 2

Wolf ATEX Safety Torches With LED - TR & TS Range

ATEX Zone 1 & Zone 2







Wolf ATEX Safety LED Torches are ATEX certified torches for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres – T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.Wolf

ATEX Torches are available with a straight (TS) or right angle (TR) body style and has a high output LED bulbs providing up to four times more light than an incandescent bulb.. Wolf's ATEX Torches typically have a life of over 25,000hours and have a compact torch designed with a high-grip ergonomic form for easy single-handed switching.

Wolf's torches have a impact resistance enclosure and a shatterproof polycarbonate lens which has a scratch and chemically resistant coating.

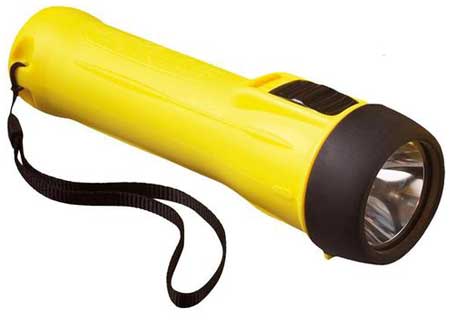

Pictured: Wolf ATEX Safety Torch With LED

Wolf ATEX Safety Torch With LED

Both the TS and TR models are sealed dust tight and protected from water immersion with an IP67 certified enclosure.

Wolf ATEX Safety Torch With LED - Features & Benefits

  • ATEX certified for explosive gas and dust approval
  • High output LED light sourceWolf Safety
  • Duration up to 27 hours from 2 x 1.5V D Cells LR20
  • T4 temperature class
  • IP67 dust and watertight
  • Low battery indicatorATEX
  • Simple, robust design
  • Straight and right-angle versions
  • Single handed switching
  • LED module can be retro-fitted to Wolf T4 bulb torches
  • All models are supplied with wrist straps

ATEX Certified Torch
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations



Wolf ATEX Safety Torch With LED
Wolf Part Reference Wolf TR-30+ Wolf TS-30+ Wolf TR-35+ Wolf TS-35+
Torch Description Primary Cell LED Right Angle or Straight Safety Torch
Hazardous Area Code (ATEX & IECEx) I M2/II 2GD Ex ib I Mb/IIC T4 Gb -30ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db I M2/II 2GD Ex ib I Mb/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ib IIIB T130ºC Db I M1/II 1GD Ex ia I Ma/IIC T4 Gb -30ºC ≤ Ta ≤ 40/55ºC Ex ia IIIB T130ºC Da I M1/II 1GD Ex ia I Ma/IIC T4 Gb -20ºC ≤ Ta ≤ 40/55ºC Ex ia IIIB T130ºC Da
Type of Protection "ib" Intrinsic Safety "ia" Intrinsic Safety
Area of Hazardous Classification (Gas) Zones 1 & 2, Gas Group IIA, IIB, IIC Zones 0, 1 & 2, Gas Group IIA, IIB, IIC
Temperature Classification (Gas) T4
Area of Hazardous Classification (Dust) Zones 21 and 22, Dust Groups IIIA and IIIB Zones 20, 21 and 22, Dust Groups IIIA and IIIB
Maximum Surface Temperature (Dust) T130ºC
Ambient Temperature -30ºC to +40/55ºC -20ºC to +40/55ºC -30ºC to +40/55ºC -20ºC to +40/55ºC
ATEX Certificate ATEX Baseefa07ATEX0091X / IECEx BAS 06.0089X
Enclosure Impact resistant thermoplastic, chemical resistant, static dissipative
Lens Toughened Glass 4mm
Beam Type Medium Spot with Wide-Angle Flood of Fringe Light
Light Source Part Number TP-300
Power Torch LED Module
Output Up to 210lm
Life 25,000+ Hours (Fitted for Life)
Power Source Type LR20 Primary Cells to IEC60086
Part Number 2 x H-20 (1 x LR-20 Cell suitable for 55º Maximum Ambient Temperature) (Batteries not supplied with torch)
Volts 2 x 1.5V
Light Duration Up to 14 hours to low power indicator.Up to 17 hours total
Low Battery Indicator Yes
Ingress Protection IP67
Weight (Including Battery) 0.500kg 0.475kg 0.500kg 0.475kg



Wolf ATEX Safety LED Torches – Product Dimensions

Wolf ATEX Safety LED Torches – Product Dimensions

Pictured: Wolf ATEX Safety Torch With LED for Hazardous Areas Zone 1 & Zone 2

Wolf ATEX Safety Torch With LED for Hazardous Areas Zone 1 & Zone 2
