Wolf TR-45 ATEX LED Torch Hazardous Area Zone 1 & Zone 2

Wolf TR-45 ATEX LED Torch Hazardous Area Zone 1 & Zone 2

Wolf ATEX LED Torch

Wolf TR-45

ATEX Zone 1 & Zone 2



Wolf TR-45 hazardous area torch is ATEX & IECEx certified for use in Zones 1 & 2 potentially explosive gas atmospheres and Zones 21 & 22 dust atmospheres. Zone 0 and Zone 20 version LED torches are available with ATEX certification – order reference Wolf TR-45.

WOLF TR-40

  • Zones 1 and 2 Gas Groups IIA, IIB and IIC
  • Zones 21 and 22 (TR-40 TR-40+)
  • Zones 20, 21 and 22 (TR-45)
  • Temperature Classification (Gas) – T3 or T4 (dependant on cell type used)
  • Torch Beam Type – High Output, Spot Beam with Wide Angle Fringe of Light
  • Compact & Lightweight – 0.350Kg

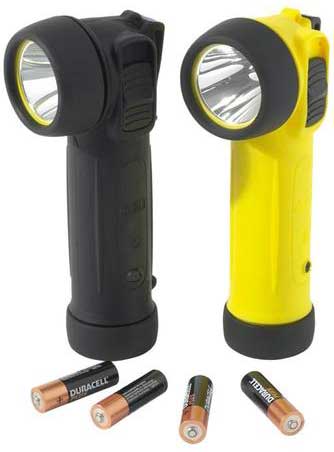

Pictured: Wolf TR-45 ATEX LED Torch Hazardous Area Zone 1 & Zone 2

Wolf TR-45 ATEX LED Torch Hazardous Area Zone 1 & Zone 2

Wolf TR-45 ATEX LED Torch Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • ATEX Approved for explosive gas and dust atmospheres
  • LED light source ‘fitted for life’, no bulb replacement requiredWolf Safety
  • High output focussed spot beam with wide angle fringe of light
  • Up to 7.5 hours high power output from 4 x AA primary cells
  • Compact and lightweight torch designATEX
  • Low battery indicator fitted on TR-40+ model
  • Zone 0 version available
  • All models with Group I Mining Approval



Wolf TR-45 ATEX LED Torch Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference TR-45
Product Description High Power LED, Right Angle Safety Torch
Black Body Zone 0
Code Industrial II 1 G Ex ia IIC T4/T3 IP67
Mining I M1 Ex ia I IP67
Type of Protection 'ia/ib' Intrinsic Safety, tD Enclosure Protection
Area of Classification (Gas) Zones 0, 1 and 2, Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T3/T4
Ambient Temperature (Gas) -20ºC to +40ºC
Area of Classification (Dust) -
Max Surface Temperature (Dust) -
Ambient Temperature (Dust) -
Certificate BAS 07 ATEX 0091. IECEx: BSA 06.0089
Enclosure High Impact Resistant, Chemical Resistant, Electrostatic Non-Hazardous
Lens Toughened Glass
Beam Type High Output Beam with Focussed Spot and Wide Angle Fringe of Light
Light Source Type High Power LED
Power 1.4W
Output Up to 145 lm
Life 25,000 hours+ (Fitted for life)
Power Source Part Number TP-295 (4 x LR6 Cells)
Cell Type LR6 Primary Cells, to IEC 60086, Alkaline AA Cells
Volts 4 x 1.5V
Low Battery Indicator -
Light Duration Up to 7.5 hours at full brightness / Up to 72 hours total light duration
Ingress Protection IP67
Weight (Incl Cells) 0.350kg



Adobe

Wolf TR-45 ATEX LED Torch - Spec Sheet
