Wolf Torches Hazardous Area ATEX Zone 1 & Zone 2

Wolf ATEX LED Torch - TR Range

ATEX Zone 1 & Zone 2







The Wolf ATEX LED Torch TR40 range uses the latest LED technology to give excellent performance and reliability in the most extreme and hazardous area conditions, including Zone 0, Zone 1 and Zone 2.Wolf

Wolf ATEX LED Torches are ATEX certified torches for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres.

T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

The Wolf ATEX LED TR40 Torch is CE marked to the ATEX Directive and certified to the IECEx Scheme, with versions allowing use in M1 and M2 mining applications as well as hazardous area Zone 0, Zone 1 and Zone 2 potentially explosive gas, vapour, mist and dust atmospheres, with T4 or T3 temperature class dependent on cell type used.

Wolf ATEX LED Torches (Zones 0, 1, 2, 21 & 22 Hazardous Areas)

The compact and lightweight right angle Wolf LED ATEX TR40 torch design has a high-grip ergonomic form with easy single handed switching, even with gloved hands.

The high strength hazardous area torch body has proven impact resistance even at sub zero temperatures. The rubber armoured lens ring and end cap give enhanced grip and shock protection.

The lens is resistant to scratch and chemical attack. The Wolf LED ATEX TR40 torch is sealed dust tight and protected from water immersion with a certified IP67 enclosure.

The right-angle body arrangement incorporates a replaceable high strength thermoplastic belt clip for hands free use.

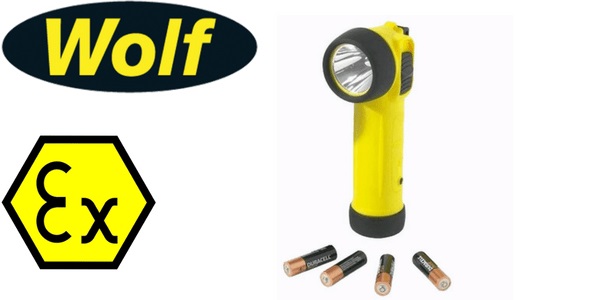

Pictured: Wolf ATEX LED Torch

Wolf ATEX LED Torch

Wolf ATEX LED Torch - Features & Benefits

  • ATEX Approved for explosive gas and dust atmospheres
  • ATEXLED light source ‘fitted for life’, no bulb replacement required
  • High output focussed spot beam with wide angle fringe of light
  • Up to 7.5 hours high power output from 4 x AA primary cells
  • Compact and lightweight torch design
  • Low battery indicator fitted on TR-40+ model
  • Zone 0 version available
  • All models with Group I Mining Approval

Wolf ATEX LED Torches

(Zones 0, 1, 2, 21 & 22 Hazardous Areas)

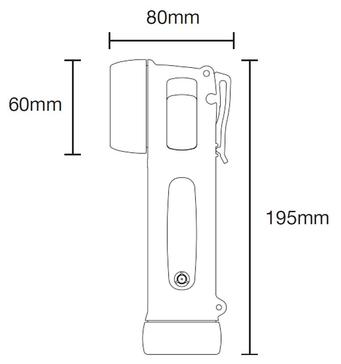

Product Dimensions

Wolf ATEX LED Torches (Zones 0, 1, 2, 21 & 22 Hazardous Areas) - Product Dimensions

ATEX Certified Torches
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf ATEX LED Torch - Product Range
Wolf Product Reference TR-40 TR-40+ TR-45
Product Description High Power LED, Right Angle Safety Torch
Yellow Body Zone 1 Yellow Body Zone 1 + Low Battery Indicator Black Body - Zone 0
Code Industrial II 2 GD Ex ib IIC T4/T3 tD A21 IP67 T85ºC II 1 G Ex ia IIC T4/T3 IP67
Mining I M2 Ex ib I IP67 I M1 Ex ia I IP67
Type of Protection 'ia/ib' Intrinsic Safety, tD Enclosure Protection
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC Zones 0, 1 and 2, Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T3/T4
Ambient Temperature (Gas) -20ºC to +40ºC
Area of Classification (Dust) Zones 21 and 22 -
Max Surface Temperature (Dust) 85ºC -
Ambient Temperature (Dust) -20ºC to +40ºC -
Certificate BAS 07 ATEX 0091. IECEx: BSA 06.0089
Enclosure High Impact Resistant, Chemical Resistant, Electrostatic Non-Hazardous
Lens Shatterproof Polycarbonate, with Scratch & Chemical Resistant Hard Coat Toughened Glass
Beam Type High Output Beam with Focussed Spot and Wide Angle Fringe of Light
Light Source Type High Power LED
Power 1.4W
Output Up to 145 lm
Life 25,000 hours+ (Fitted for life)
Power Source Part Number TP-295 (4 x LR6 Cells)
Cell Type LR6 Primary Cells, to IEC 60086, Alkaline AA Cells
Volts 4 x 1.5V
Low Battery Indicator - Yes -
Light Duration Up to 7.5 hours at full brightness / Up to 72 hours total light duration
Ingress Protection IP67
Weight (Incl Cells) 0.350kg
