Wolf ATEX Torch

Wolf TR-24B

ATEX Zone 1 & Zone 2



Wolf TR-24B is an ATEX torch with “ib” intrinsic safety type of protection for hazardous areas – using high power xenon filament as the light source the TR-24B provides an output of 16lm.

  • Description: Primary cell LED right angle safety torch
  • Hazardous Area Code: II 2GD Ex eb ib IIIB T4 Gb Ex tb IIIC T95ºC Db (-20ºC ≤ Ta ≤  +40/55ºC)
  • Type Of Protection: Increased Safety / Intrinsic Safety
  • Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
  • Temperature Classification (Gas): T4
  • Hazardous Area Classification (Dust): Zone 21 and 22
  • Max Surface Temperature (Dust): T130°C
  • Ambient Temperature: -20°C to +40/55°C
  • Certificate: ATEX Baseefa02ATEX2220X / IECEx BAS 15.0033X
  • Enclosure: Impact resistant thermoplastic, electrostatic non-hazardous
  • Lens: Toughened Glass
  • Beam Type: Medium spot

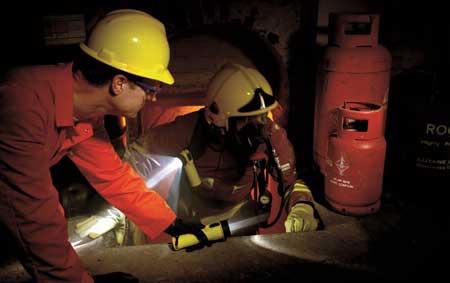

Pictured: Wolf TR-24B ATEX Torch Hazardous Area Zone 1 & Zone 2

Wolf TR-24 ATEX Torch Hazardous Area Zone 1 & Zone 2

Wolf TR-24B ATEX Torch Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • T4 models
  • Simple, robust designWolf Safety
  • Ultimate halogen light output
  • High energy alkaline cell certified
  • ATEX explosive gas and dust approvalATEX
  • IECEx Scheme certified



Wolf TR-24B ATEX Torch Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference TR-24B
Product Description Safety Torch, Primary Cell Powered, Right-Angle
Code ATEX II 2 GD Ex e ib IIC T4 (Ta = 40/55ºC) Gb Ex tD A21 IP67 T95ºC (Ta = 55ºC) Db
IECEx Ex e ib I/IIC T4 IP67/Ex tD A21 T95
Type of Protection Increased Safety, Intrinsic Safety
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T4
Ambient Temperature (Gas) -20ºC to +40ºC / +55ºC
Area of Classification (Dust) Zones 21 and 22
Temperature Class (Dust) 95ºC
Ambient Temperature (Dust) -20ºC to +55ºC
Certificate BAS 02 ATEX 2220X - IECEx TSA 05.0017X
Enclosure Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
Lens Polycarbonate, Impact Resistant with Hard Coat
Beam Type Medium Spot
Light Source Part No TP-404
Bulb Type Xenon Filled Filament
Rating 2.4V, 0.7A
Output 16 lm (at non voltage)
Life 50 hours
Spare TP-404
Power Source Part Number 2 x H-20 (LR20)
Battery Type R20 / LR20 Primary Cells, to IEC 60086
Volts 2 x 1.5V
Light Duration Up to 12 hours
Ingress Protection IP67
Weight (Excl. Cells) 190g
Weight (Incl Battery) 490g
