Wolf Rechargeable Torch ATEX

Wolf Rechargeable Torch ATEX

Wolf Torches Hazardous Area ATEX Zone 1 & Zone 2

Wolf Rechargeable Torch ATEX - R Range

ATEX Zone 0, Zone 1 & Zone 2







Wolf R-30, R-50 & R-55 Rechargeable Torches are ATEX certified torches for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres – T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

The rechargeable torches have a right angle body style and a replaceable high strength thermoplastic belt clip for hands free use. Wolf's rechargeable torches are ideal for areas where a T4 temperature class permits and have a compact torch design with a high-grip ergonomic form for easy single-handed switching.

Wolf's torches have a impact resistance enclosure and a rubber armoured lens ring and end cap which provides an enhanced grip and shock protection.

The Wolf rechargeable torches utilise a unique high power LED or halogen bulb to provide over 3 hours of duration at full power output. High intensity red LED's indicate the battery charge and towards the end of the discharge the torch beam flashes off repeatedly as an additional warning.

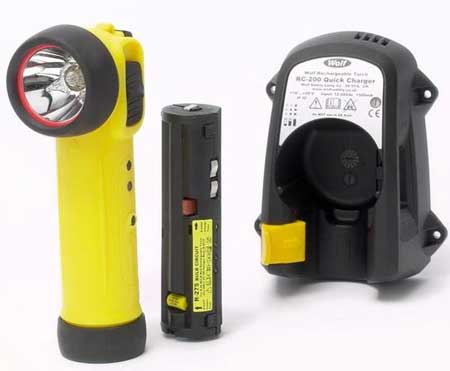

Pictured: Wolf Rechargeable Torch ATEX

Wolf Rechargeable Torch ATEX

The Wolf rechargeable torches are sealed dust tight and protected from water immersion with an IP67 certified enclosure.

Wolf Rechargeable Torch ATEX - Features & Benefits

  • ATEX approved for explosive gas and dust atmospheres
  • High power LED or Halogen bulb versions for outstanding light outputWolf Safety
  • Compact and lightweight ergonomic torch design
  • Two levels of light output give up to six hours duration
  • Battery state-of-charge indicator
  • Utilises latest battery technology, eliminates 'memory' affectATEX
  • Very low maintenance, quick and easy parts replacement
  • Stand-by power failure mode
  • Mains and vehicle quick charge options
  • All models are supplied with wrist straps and clip rings
  • Suitable for cyclic and short and long term standby applications
Wolf Rechargeable Torch ATEX - Product Range
Wolf Product Reference R-30 R-50 R-55
Product Description Rechargeable Safety Torch Right Angle
Zone 1 Halogen Zone 1 LED Zone 0 LED
Code II 2GD Ex e ib IIC T4 tD A21 IP67 T85ºC II 2GD Ex ib IIC T4 tD A21 IP67 T85ºC II 1 G Ex ia IIC T4 IP67
Type of Protection "e" increased safety, "ia/ib" intrinisic safety, "tD" protection by enclosure
Area of Classification (Gas) Zones 1 and 2 Zones 0, 1 and 2
Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T4
Area of Classification (Dust) Zones 21 and 22 -
Max Surface Temperature (Dust) T85ºC -
Ambient Temperature -20ºC to +40ºC
Certificate BAS 05 ATEX 0068 - IECEx BSA 05.0070 BAS 05 ATEX 0069 - IECEx BSA 06.0001
Enclosure Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
Lens Polycarbonate, Impact Resistant with Hard Coat Toughened Glass 4mm
Beam Type Spot
Light Source Part No R-451 -
Bulb Type Halogen Filled Filament Bulb High Power LED
Volts 6.0V -
Watts 4 Watts 3 Watts
Output 54 lm Up to 185 lm
Life 300 hours 25,000 hours
Power Source Part Number R-271
Battery Type Rechargeable Battery, Lithium-Ion
Volts 7.4V
Capacity / Life 2.4Ah / Up to 500 Recharge Cycles
Light Duration Up to 3.5 / 6.5 hours
Ingress Protection IP67 to EN60529:1992
Weight (Incl Cells) 0.340kg 0.375kg
Charger 12-24 VDC RC-200L
Charger 100-254 VAC RC-200H
Recharge Time 3.0 hours (90% in 1.5 hours)





Adobe

Wolf Rechargeable Torch ATEX - Instructions

Adobe

Wolf Rechargeable Torch ATEX - Spec Sheet
