Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2

Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2

Wolf Rechargeable Torch ATEX

Wolf R-50

ATEX  Zone 1 & Zone 2





Wolf R-50 Rechargeable Torch is an ATEX certified torch for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres.

The Wolf R-50 torch is low maintenance with quick and easy parts replacement, a full spares service is offered for all internal/external fittings, and the LED light source is expected to last the product’s lifetime

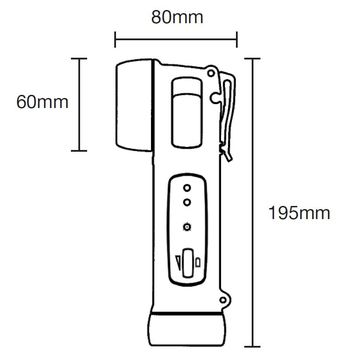

Pictured: Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2

Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2

Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • ATEX approved for explosive gas and dust atmospheres
  • High power LED or Halogen bulb versions for outstanding light outputWolf Safety
  • Compact and lightweight ergonomic torch design
  • Two levels of light output give up to six hours duration
  • Battery state-of-charge indicator
  • Utilises latest battery technology, eliminates 'memory' affectATEX
  • Very low maintenance, quick and easy parts replacement
  • Stand-by power failure mode
  • Mains and vehicle quick charge options
  • All models are supplied with wrist straps and clip rings
  • Suitable for cyclic and short and long term standby applications

ATEX Certified Torch
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference R-50
Product Description Rechargeable Safety Torch Right Angle
Zone 1 LED
Code II 2GD Ex ib IIC T4 tD A21 IP67 T85ºC
Type of Protection "e" increased safety, "ia/ib" intrinisic safety, "tD" protection by enclosure
Area of Classification (Gas) Zones 1 and 2
Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T4
Area of Classification (Dust) Zones 21 and 22
Max Surface Temperature (Dust) T85ºC
Ambient Temperature -20ºC to +40ºC
Certificate BAS 05 ATEX 0068 - IECEx BSA 05.0070
Enclosure Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
Lens Polycarbonate, Impact Resistant with Hard Coat
Beam Type Spot
Light Source Part No R-451
Bulb Type High Power LED
Volts -
Watts 3 Watts
Output Up to 185 lm
Life 25,000 hours
Power Source Part Number R-271
Battery Type Rechargeable Battery, Lithium-Ion
Volts 7.4V
Capacity / Life 2.4Ah / Up to 500 Recharge Cycles
Light Duration Up to 3.5 / 6.5 hours
Ingress Protection IP67 to EN60529:1992
Weight (Incl Cells) 0.375kg
Charger 12-24 VDC RC-200L
Charger 100-254 VAC RC-200H
Recharge Time 3.0 hours (90% in 1.5 hours)

Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2

Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2

Adobe

Wolf R-50 Rechargeable Torch Hazardous Area Zone 1 & Zone 2 - Spec Sheet
