Wolf M-80 Midi Torch ATEX

Wolf M-80 Midi Torch ATEX

Wolf Torches Hazardous Area ATEX Zone 1 & Zone 2

Wolf M-80 Midi Torch

ATEX Zone 1 & Zone 2



Wolf M-80 Midi Torches are certified for use in potentially explosive atmospheres and provide excellent illumination thanks to it's compact, high power LED light.

The M-80 Midi Torch is robust and reliable in the most extreme conditions and is CE marked to the ATEX Directive and IECEx certified for Zone 1 and Zone 2 hazardous areas.

The Wolf M-80 has a smooth, easy grip and ergonomic enclosure and provides a narrow high intensity beam with a lower output wide angle fringe making it an ideal solution for inspection and maintenance requirements where reduced visibility can be encountered.

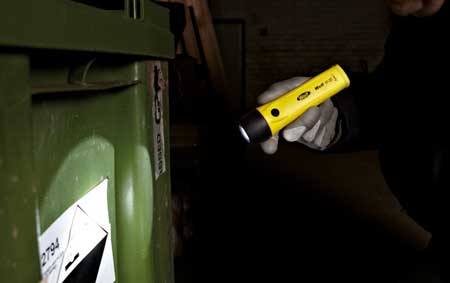

Pictured: Wolf M-80 Midi Torch ATEX

Wolf M-80 Midi Torch ATEX

The Midi Torch has a battery duration of up to 7 hours and is sealed dust tight and protected from water immersion with an ingress protection rating of IP67.

Wolf M-80 Midi Torch ATEX - Features & Benefits

  • Midi – 1 x LED Zone 1 c/w 4 x LR6/AA Primary Cells (Wolf Part # TP-295)
  • ATEX and IECEx certified for Zones 1 and 21 explosive gas and dust atmospheres
  • 189 lumen high output LED light sourceWolf Safety
  • IIB Gas Group / T3/T4 temperature class
  • IIIB Dust Group / 200°C maximum surface temperature
  • Midi compact sizeATEX
  • Compact & robust ergonomic design
  • Single handed switch with switch protection shroud
  • IP67 water and dust tight
  • Group I M2 Mining approval
  • Supplied with a wrist strap and T4 approved cells
Wolf M-80 Midi Torch ATEX - Technical Specification
Wolf Product Reference M-80
Product Description ATEX Midi Safety Torch with LED Primary Cell Powered
Code Industrial II 2 GD Ex ib IIB T3/T4 Gb IP67, Ex ib IIIB T200ºC Db
Mining I M2 Ex ib I Mb IP67
Type of Protection 'ib' Intrinsic Safety
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB
Temperature Classification (Gas) T3/T4
Area of Classification (Dust) Zones 21 and 22, Dust Groups IIIA and IIIB
Max Surface Temperature (Dust) 200ºC
Ambient Temperature -20ºC to +40ºC
Certificate Baseefa 11ATEX 0236 / IECEx BAS 11.0116
Enclosure Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
Lens Polycarbonate, Impact Resistant
Beam Type Narrow Spot with Wide Angle Fringe Light
Light Source Type High Power LED
Output Up to 189 lm
Life 25,000+ Hours (fitted for life)
Power Source Part Number TP-295 (4 x LR6 Cells)
Battery Type LR6 Primary Cells, to IEC 60086, Alkaline AA
Volts 4 x 1.5V
Light Duration Up to 7 hours
Ingress Protection IP67
Weight (Including Battery) 0.190kg



Pictured: Wolf M-80 Midi Torch ATEX for Hazardous Areas Zone 1 & Zone 2

Wolf M-80 Midi Torch ATEX for Hazardous Areas Zone 1 & Zone 2



Adobe

Wolf M-80 Midi Torch ATEX - Instructions

Adobe

Wolf M-80 Midi Torch ATEX - Spec Sheet
