Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2

Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2

Wolf LinkEx Tank Light Kits ATEX

Wolf LX-237

Hazardous Area Zone 1 & Zone 2

Tank Lighting Kits



Wolf LX-237 LinkEx Tank Lighting Kits are ATEX certified tank lighting kits for safe use in hazardous area Zones 1, 2, 21 & 22 and potentially explosive atmospheres.

The LinkEx Tank Lighting kits allow for a flexible setup of high quality task and ambient lighting to suit all working conditions in tanks and vessels.

Typical applications include vessel entry, tank cleaning and routine inspection work and programmes of preventative maintenance shutdowns all encountered in the oil and gas, aircraft, petrochemical and utility markets.

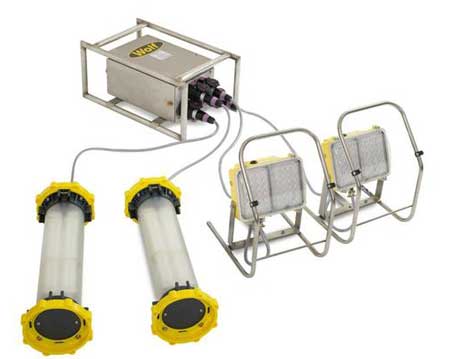

Pictured: Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2

Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2

Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • ATEX Certified
  • Approved for explosive Gas and Dust atmospheresWolf Safety
  • Ultra bright, high power, low maintenance LED `Fitted for Life’ or Compact Fluorescent light source
  • Voltage tolerance monitor for safe operation indication (LED version only)
  • Powers up to 8 lightsATEX
  • Fitted with ATEX plugs and sockets
  • Low and easy maintenance
  • Robust, durable and lightweight construction
  • Quick and easy installation over a large area
  • Low power consumption
  • Wide range of accessories

ATEX Certified Tank Lighting Kit
Zones 1, 2, 21 & 22 Hazardous Areas

  • Zone 1 & Zone 2 Gas
  • Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference Linked / Non-Linked Cabling Transformer Kit Code
2 x LX-400 180º + 2 x WF-300 Non-Linked 20m per light SY 2.5mm² (LX-400), SY 4mm² (WF-300) GRP 230V (LL-214) LX-237

Wolf LinkEx Tank Lighting Kit ATEX – 2 x LX-400 & 2 x WF-300 Configuration

Wolf LinkEx Tank Lighting Kit ATEX  2 x LX-400 & 2 x WF-300 Configuration

Adobe

Wolf LX-237 LinkEx Tank Lighting Kits Hazardous Area Zone 1 & Zone 2 - Spec Sheet
