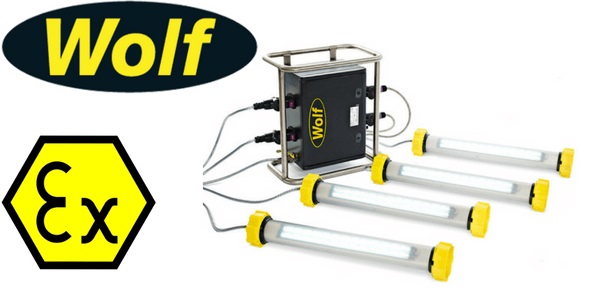

Wolf LinkEx Tank Lighting Kits - Hazardous Area ATEX Zone 1 & Zone 2

Wolf LinkEx Tank Lighting Kits - Hazardous Area ATEX Zone 1 & Zone 2

Wolf Lighting - Hazardous Area ATEX Zone 1 & Zone 2

Wolf LinkEx - Lx & LL Range

Hazardous Area Zone 1 & Zone 2

Tank Lighting Kits



The Wolf Tank Lighting Kit (ATEX Certified) provides a low voltage portable temporary lighting solution for Zone 1 hazardous areas where potentially explosive gases, vapours and dusts may be present.

Wolf LinkEx tank lighting kits allow for a flexible set up of high quality task and ambient lighting to suit all working conditions in tanks and vessels and kits can be supplied to suit different client requirements using a simple configuration of:

Wolf Safety

  • LinkEx™ LED Temporary Luminaires
  • LinkEx™ Fluorescent Temporary Luminaires
  • LinkEx™ LED Floodlites
  • Handheld Leadlamps
  • ATEX Transformer, 230V or 110V to 24V
  • Range of cables, plugs and socket types and power distribution systems
  • Protective, fixing and mounting accessories

Typical applications include vessel entry, tank cleaning and routine inspection work and programmes of preventative maintenance shutdowns all encountered in the oil and gas, aircraft, petrochemical and utility markets

Wolf LinkEx Tank Lighting Kits - Hazardous Area ATEX Zone 1 & Zone 2

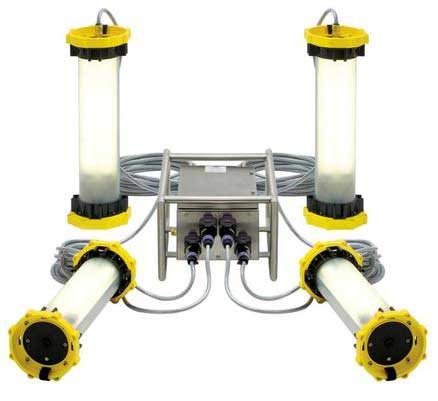

Pictured: Wolf LinkEx Tank Lighting Kits ATEX

Wolf LinkEx Tank Lighting Kits ATEX

Tank lighting kits supply safe low voltage lighting for vessel entry and tank cleaning operations - Wolf Safety Lamps produce custom built tank lighting solutions e.g. low smoke, zero halogen emission cable (LSF), compliant with BS6883 for the marine and offshore industry.

Wolf LinkEx Tank Lighting Kits ATEX - Features & Benefits

  • ATEX Certified
  • Approved for explosive Gas and Dust atmospheres
  • Ultra bright, high power, low maintenance LED `Fitted for Life’ or Compact Fluorescent light source
  • Voltage tolerance monitor for safe operation indication (LED version only)
  • Powers up to 8 lightsATEX
  • Fitted with ATEX plugs and sockets
  • Low and easy maintenance
  • Robust, durable and lightweight construction
  • Quick and easy installation over a large area
  • Low power consumption
  • Wide range of accessories

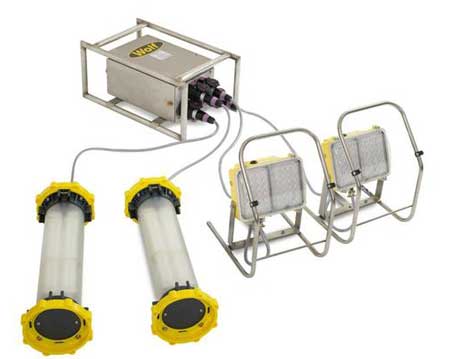

Pictured: Wolf LinkEx Tank Lighting Kits ATEX for Hazardous Areas Zone 1 & Zone 2

Wolf LinkEx Tank Lighting Kits ATEX for Hazardous Areas Zone 1 & Zone 2



ATEX Certified Tank Lighting Kit

Zones 1, 2, 21 & 22

  • Zone 1 & Zone 2 Gas
  • Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf LinkEx Tank Lighting Kits ATEX - Product Range
Wolf Product Reference Linked / Non-Linked Cabling Transformer Kit Code
4 x LX-400 180º Non-Linked 20m per light SY 2.5mm² GRP 110V (LL-114) LX-175
SS 110V (LL-124) LX-185
GRP 230 (LL-214) LX-275
SS 230V (LL-224) LX-285
3 x LX-400 180º + 1 x 360º Non-Linked 20m per light SY 2.5mm² GRP 110V (LL-114) LX-176
SS 110V (LL-124) LX-186
GRP 230 (LL-214) LX-276
SS 230V (LL-224) LX-286
2 x LX-400 180º + 2 x WF-300 Non-Linked 20m per light SY 2.5mm² (LX-400), SY 4mm² (WF-300) GRP 110V (LL-114) LX-137
SS 110V (LL-124) LX-157
GRP 230 (LL-214) LX-237
SS 230V (LL-224) LX-257
4 x WF-300 Non-Linked 20m per light SY 4mm² (WF-300) GRP 110V (LL-114) LX-135
SS 110V (LL-124) LX-155
GRP 230 (LL-214) LX-235
SS 230V (LL-224) LX-255
8 x LX-400 180º (2 x chains of 4 linked lights) Linked 5m per light SY 2.5mm² GRP 110V (LL-114) LX-177
SS 110V (LL-124) LX-187
GRP 230 (LL-214) LX-277
SS 230V (LL-224) LX-287
4 x LX-400 180º (1 x chain of 4 linked lights) + 1 x WF-300 Linked 5m per light SY 2.5mm² (LX-400), SY 4mm² (WF-300) GRP 110V (LL-114) LX-178
SS 110V (LL-124) LX-188
GRP 230 (LL-214) LX-278
SS 230V (LL-224) LX-288
4 x LL-524 Non-Linked 20m per light SY 2.5mm² GRP 110V (LL-114) LX-115
SS 110V (LL-124) LX-125
GRP 230 (LL-214) LX-215
SS 230V (LL-224) LX-225
3 x LL-524 + 1 x LL-524/360º Non-Linked 20m per light SY 2.5mm² GRP 110V (LL-114) LX-116
SS 110V (LL-124) LX-126
GRP 230 (LL-214) LX-216
SS 230V (LL-224) LX-226
4 x LL-524/360º Non-Linked 20m per light SY 2.5mm² GRP 110V (LL-114) LX-118
SS 110V (LL-124) LX-128
GRP 230 (LL-214) LX-218
SS 230V (LL-224) LX-228
2 x WF-300 + 2 x LL-524 Non-Linked 20m per light SY 2.5mm² (LL-524) SY 4mm² (WF-300) GRP 110V (LL-114) LX-136
SS 110V (LL-124) LX-156
GRP 230 (LL-214) LX-236
SS 230V (LL-224) LX-256
4 x LL-24 Non-Linked 20m per light SY 2.5mm² GRP 110V (LL-114) LL-145
SS 110V (LL-124) LL-165
GRP 230 (LL-214) LL-245
SS 230V (LL-224) LL-265
