Wolf Airlamps - Hazardous Area ATEX Zone 1 & Zone 2

Wolf ATEX Turbolites - A-TL Range

Hazardous Area Zone 1 & Zone 2

Airlamps





Wolf's ATEX Turbolites are high powered compressed air driven lamps which are ATEX certified for safe use in hazardous area Zones 1, 2, 21 & 22 and potentially explosive atmospheres where a T4 temperature class permits.

With a safety record of 75 years, Wolf Airlamps are one of the safest high power portable lamps for hazardous areas Zone 1 and Zone 2.

The new generation ATEX Wolf Safety Airlamp Turbolite meets EN 1127 – 'Explosion Prevention and Protection’ for Europe; and in the USA, FM Class 3600 ‘Electrical Equipment for use in Hazardous (Classified) Locations’.

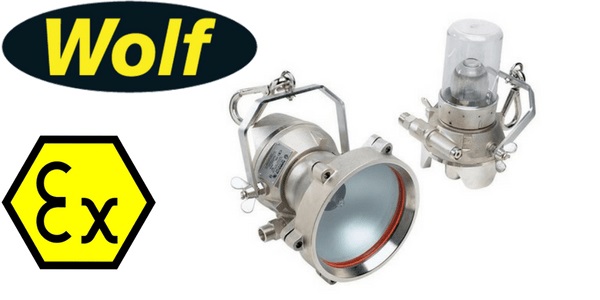

Wolf Airlamp ATEX Turbolite - Zone 1, 2, 21 & 22 Hazardous Area

The Wolf ATEX Turbolites provide illumination for shotblasting, cleaning and coating of storage tanks & vessels, pipeline and structural engineering applications and are a safer alternative to mains and low voltage lighting in potentially explosive atmospheres.

ATEX Turbolites are powered, purged, pressurised and cooled by compressed air controlled by an integral regulator which passes through the lamp head and drives the turbine wheel by means of three nozzle plates.

The turbine drives a magnet rotor within windings, generating the 24 Volt AC electrical supply which powers the 250 Watt halogen bulb.

The standard hazardous area Wolf Airlamp range consists of two models, both produced in high strength aluminium alloy.

The Wolf A–TL44A ‘Bay Light’ version provides a high level of all-round general illumination.

The Wolf A–TL45A ‘Floodlight’ version has a reflector head with a matt reflector giving a wide-angle diffused beam.

The ‘A’ suffix denotes ATEX lightweight aluminium airlamp models, reducing Wolf Turbolite Airlamp weight to approximately half that of the brass airlamps.

Alternative ‘B’ suffix Wolf Airlamp models A–TL44B and A–TL45B are also ATEX certified but with brass housings, usable in gassy mines.

All Wolf hazardous area airlamps are nickel plated to protect against corrosion and are supplied with a bridle and safety hook fitted.

T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

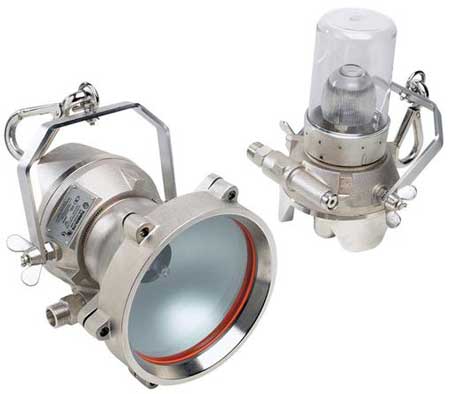

Pictured: Wolf ATEX Turbolites

Wolf ATEX Turbolites

Wolf ATEX Turbolites - Features & Benefits

  • CE marked to ATEX Directive, for use in zones 1 and 2 Hazardous Areas
  • Aluminium super-lightweight constructionWolf Safety
  • 250 watt Halogen light output
  • Safe compressed air power source
  • Re-designed for greater reliability
  • Fitted with stainless steel exhaust silencerATEX
  • Dust ignition protected for zones 21 and 22 using remote exhaust
  • Group I Mining approval with alternative brass construction
  • US Factory Mutual dual marking approval

ATEX Certified Airlamp
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf ATEX Turbolites - Product Range
Wolf Product Reference A-TL44A A-TL44B A-TL45A A-TL45B
Product Description Safety Bay Light, Compressed Air Powered Safety Flood Light, Compressed Air Powered
Code ATEX II 2 GD II T4 (Tamb = 55ºC) T135ºC
Mining - I M2 - I M2
FM Class 1 Div 1 Groups A, B, C, D, T4 Ta = 55ºC
Apparatus Standards EN1127:1998
Type of Protection Technical File
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas) T4
Area of Classification (Dust) Zones 21 and 22
Max Surface Temperature (Dust) T135ºC
Ambient Temperature -20ºC to +40ºC
Certificate SIRA02ATEX5099X
Enclosure Aluminium Brass Aluminium Brass
Lens Lens Ball Glass / Plastic Dome Toughened Glass (15mm)
Beam Type All-around 360º Illumination Flood (as standard) or Spot (to order)
Light Source Part Number A-129 (as standard) / A-159 (alternative)
Type Halogen Filled Filament Bulb
Volts 24V
Watts 250W
Output 6000 lm / 9000 lm
Life 2,000 hours / 200 hours
Power Source Type Compressed Air Driven Turbo-alternator
Air Pressure 5.0-8.0 bar
Consumption 0.75m³/min
Ingress Protection Once pressurised may be used underwater
Weight 5.5kg 9.4kg 7.1kg 13.5kg
