Zone 1 (ATEX) LED Floodlight - Hadar HDL106A

Zone 1 (ATEX) LED Floodlight - Hadar HDL106A

Hadar Lighting





ATEX IECEx Certified Hazardous Area Lighting





LED Floodlight Zone 1 (ATEX) - Hadar Hazardous Area Lighting

Hadar HDL106A - 144 x 1.2W LED's

The Hadar HDL 106A LED Floodlight Bulkhead is suitable for use in zone 1 & 21 applications.

Easy to install, the Hadar 106A weighs only 18 Kg and has been designed specifically for T6 applications.

The HDL 106A features an integrated power supply, low power consumption and multiple mounting options. In addition each module utilises 48 off 0.47W LED's.

Zone 1 (ATEX) LED Floodlight - Hadar HDL106A - Specification 144 X 1.2W LED's

  • Main Body: Marine Grade Aluminium
  • Diffuser: Polycarbonate
  • Gaskets: Silicone
  • External Fasteners: A4 Stainless Steel
  • Stirrup Bracket: 316 Stainless Steel
  • T Rating: T6 (T4 version available, see HDL106S)
  • Weight:6.0kg per module

Hazardous Area Lighting Protection

Ex II 2 G D Ex emb IIC T6 Gb, Ex t IIIC T70oC Db IP66/67

Hadar HDL106A LED Floodlight Key Features

  • Can be used as a single unit - small floodlight or bulkhead or linked together to replicate a large 250W floodlight.
  • Each module utilises 48 off 0.47W LED's.
  • Rugged construction - resistant to vibration.
  • Independently photometrically tested.
  • All units supplied with 2 cable entries. Addiontional entries available on request.
  • IP66 and IP67.
  • Optional wire guard avaiable for extra protection.
  • Narrow, Medium and Wide beam light output available.

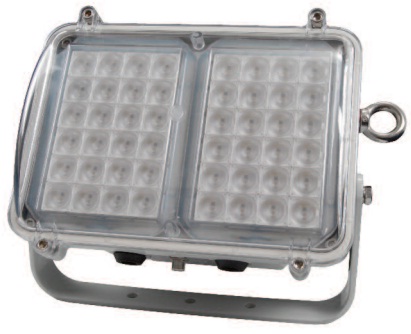

Pictured: Zone 1 (ATEX) LED Floodlight - Hadar HDL106A

Hadar 106A Hazardous Area LED Floodlight
